Large Span Prefab Metal Building Construction , Hot Dip Galvanized Steel Building

Large Span Prefab Metal Building Construction , Hot Dip Galvanized Steel Building

Brand Name:	XGZ
Model Number:	XGZ-SSB026
MOQ:	100 square meters
Price:	USD 30-70 per square meter/ Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Pingdu,Qingdao,China

Certification:

CE,ISO9001,AISC,GOST

Name:

Prefab Metal Building Construction

Type:

Light

Application Fields:

Steel Structural Fabrication Construction

Surface Treatment:

Anti-rust Paint, Hot Dip Galvanized

Main Structure:

Section Column, Beam

Drawing Design:

SAP2000, AutoCAD, PKPM, 3D3S, TEKLA

Packaging Details:

Steel Pallet, In bulk

Highlight:

Large Span Prefab Metal Building Construction

Hot Dip Galvanized Steel Structure Construction

Hot Dip Galvanized Steel Building

Product Description

Prefabricated Light Weight Steel Structure Building For Quick Assembly

Steel structure buildings for industrial and commercial projects are constructed using primary members, secondary members, roof and wall cladding, and various other components. These buildings can be customized with structural and non-structural additions such as skylights, wall lights, turbo vents, ridge ventilators, louvers, roof monitors, doors & windows, trusses, mezzanine floors, fascias, canopies, crane systems, and insulation based on customer requirements. Designed to be lightweight yet high in strength, our steel buildings offer flexibility, durability, and adaptability, making steel one of the preferred materials for modern construction.

Product Specification

Main Components of Steel Structure Buildings

Primary Framing Elements: Columns and beams made from H-section steels (hot rolled or welded), factory-primed with anti-rust paint or galvanization for durability.
Secondary Framing Elements: Purlins and tie bars fixed to columns and beams with common bolts.
Bracing: Round steel with knee bracing and supporting parts to enhance structural stability.
Cladding: Roof and wall covered with color-coated corrugated steel sheets or sandwich panels for weather protection and aesthetic appeal.
Windows and Doors: Plastic steel or aluminum-alloy windows; sliding or folding doors.
Other Options: Gutters, downpipes, transparent sheets, ventilators, and bridge cranes available upon request.

Structure	Part	Specification
Steel Frame	H section column and beam	Q355 steel, paint or galvanization
Steel Frame	Wind resistant column	Q355 steel, paint or galvanization
Roof purlin	Q235 C/Z section galvanized steel
Wall purlin	Q235 C/Z section galvanized steel
Supporting System	Tie bar	Q235 round steel pipe
	Knee Brace	Q235 angle steel L50*4
	Roof horizontal bracing	Q235 steel bar, paint or galvanized
	Column vertical bracing	Q235 steel bar, paint or galvanized
	Purlin brace	Q235 round bar
	Casing pipe	Q235 steel pipe
Gable angle steel	Q235 M24

Features of Steel Structure Building

Large Clear Span: Up to 45m span with H-section steel columns and beams; larger spans available with truss roofs.
Quality Control: Factory-manufactured under strict quality standards.
Low Maintenance Cost: High-quality paint systems ensure durability and minimal upkeep.
Architectural Versatility: Customizable with canopies, curved eaves, concrete walls, and more.
Quick Assembly: Prefabricated components enable fast on-site bolt-together installation.

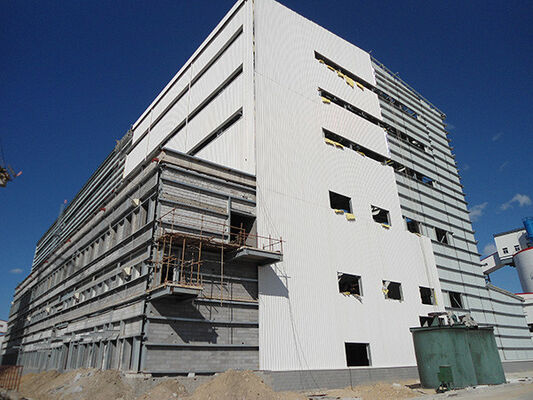

Large Span Prefab Metal Building Construction , Hot Dip Galvanized Steel Building 0

Applications of Steel Structure Buildings

Single-Span Structures: Ideal for garages, workshops, and small warehouses.
Multi-Span Structures: Suitable for large warehouses and industrial facilities.
Portal Frame Structures: Used in factories and large-scale commercial buildings.
Space Frame Structures: Perfect for airports, exhibition halls, and sports arenas.
Hybrid Structures: Combine steel with other materials for high-rise buildings and architectural landmarks.

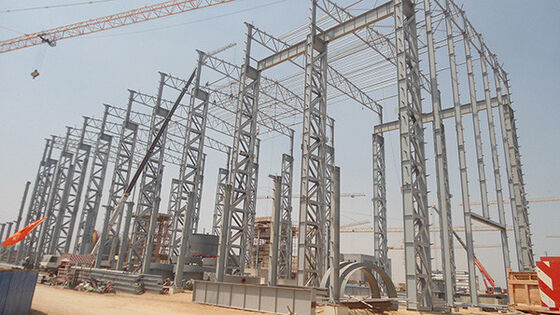

Large Span Prefab Metal Building Construction , Hot Dip Galvanized Steel Building 2

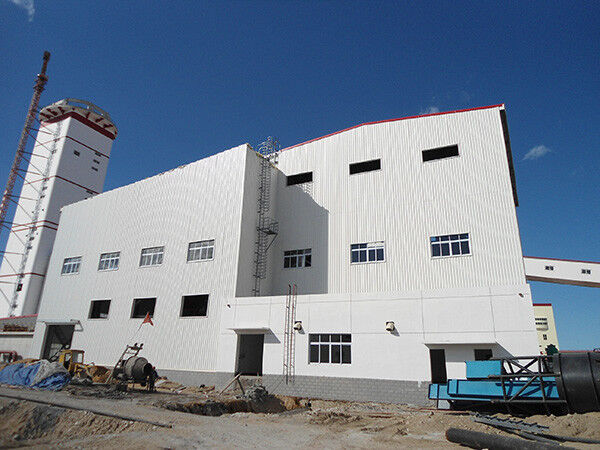

Large Span Prefab Metal Building Construction , Hot Dip Galvanized Steel Building 3

Design and Quote

Share your drawings for a customized quote. If you don't have drawings, provide the following details for our design team:

Local maximum wind speed
Snow load (if applicable)
Building dimensions (length × width × eave height)
Roof and wall material preferences
Crane requirements (if any, specify lift capacity)
Additional specifications or existing drawings

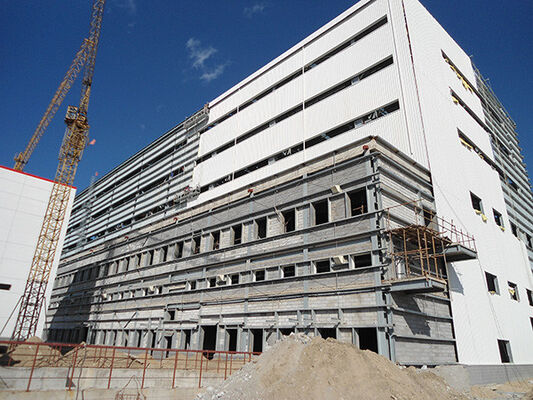

Large Span Prefab Metal Building Construction , Hot Dip Galvanized Steel Building 4

Quality Inspection

Our prefabricated steel buildings undergo strict quality control procedures, ensuring exceptional accuracy and durability. With upgraded manufacturing equipment and a team of qualified engineers, we deliver products that meet industry standards and client specifications. Custom solutions are available to meet unique project requirements.

Packing and Delivery

Main steel frames are packed on steel pallets for protection and efficient loading. Other components are securely packed in parcels and loaded into 40ft HQ containers for safe transportation.

Installation

We provide detailed installation instructions and videos. Our engineers can also assist on-site if required. Installation steps include:

Foundation construction with pre-embedded anchor bolts
Column and beam assembly
Roof and wall purlin installation
Fixing of wall and roof sheets
Installation of covers, windows, and doors

FAQ

1. Are you a factory?

Yes, we manufacture and sell steel structures with extensive experience in the industry.

2. How can I get a quotation?

3. How do you guarantee quality?

Each product undergoes strict testing and must pass 100% quality inspection before delivery.

4. Can you provide installation support?

We offer free installation drawings and videos, with optional on-site supervision by our technical team.

5. Do you offer design services?

Yes, we provide complete design solutions using AutoCAD, PKPM, MTS, 3D3S, Tarch, and Tekla Structures.
