Q235 Q355B Carbon Steel Structure Building For Warehouse Workshop Construction

Q235 Q355B Carbon Steel Structure Building For Warehouse Workshop Construction

Brand Name:	XGZ
Model Number:	XGZ-SSB007
MOQ:	100 square meters
Price:	USD 30-100 per square meter/ Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Pingdu,Qingdao,China

Certification:

CE EN1090,ISO9001,GOST,AISC

Name:

Steel Structure Building

Type:

Light

Main Structure:

Steel Column, Steel Beam

Material:

Q235, Q355B Carbon Steel

Wall And Roof:

Steel Sheet, Sandwich Panel

Color:

Customized Color

Packaging Details:

Steel Pallet

Highlight:

Q355B Carbon Steel Structure Building

Carbon Steel Structure Building Construction

Carbon Steel Structure Building Warehouse

Product Description

Lightweight And Durable Steel Structure Building For Warehouse Workshop Construction

Steel structure buildings are increasingly popular due to the speed of their installation, sustainability aspects and affordability. Steel structures can be a very cost-effective way to give yourself more space.

Steel structure building is new type building structure, structure formed by steel column, beam, bracing and purlin, all the components are prefabricated manufactured in workshop and ready for assembling, wall and roof materials could use single color sheet or sandwich panel, all the steel structure components connected by bolt, easy installation and quickly finished.

Product Specification

The pre-engineered steel structure building is mainly divided into the following five parts:

Embedded parts (can stabilize building structure)
Columns, generally with H-shaped, square tube, or C-shaped steel (usually with angle steel to connect the two C-shaped steel)
Beams, generally with H beams (the height of the beams is determined according to the span of building and roof load)
Purlin, usually C-shaped, Z-shaped or channel steel
Cladding, divided into two kinds, the first kind is single sheet (color steel sheet). The second kind is composite panel (the core such as polystyrene foam, fiberglass wool between two layers of sheet, warm in winter and cool in summer, and also has sound insulation effect)

Structure	Specification
Main frame	H section steel beam and column
Secondary frame	Galvanized C/Z purlin, steel bracing, tied bar, knee brace, edge cover etc.
Roof & Wall panel	Sandwich panel, Corrugated steel sheet
Tie Rod	Circular steel tube
Brace	Round bar
Knee Brace	Angle steel
Roof Gutter	Color steel sheet, Galvanized steel sheet
Rainspout	PVC pipe
Door	Swing door, Sliding door, Roller door
Window	PVC steel, Aluminum Alloy Window
Connecting	Anchor bolt, High-strength bolt, Common bolt

The parameters in the above table are only a reference, and we will make design choices according to the requirements of customers.

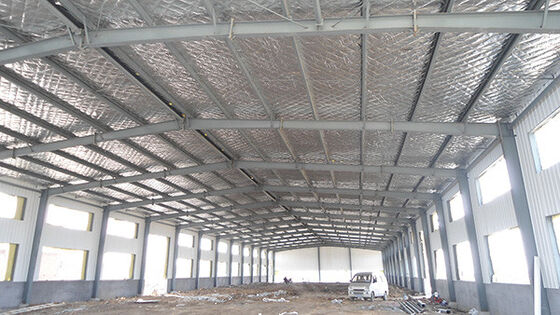

Q235 Q355B Carbon Steel Structure Building For Warehouse Workshop Construction 0

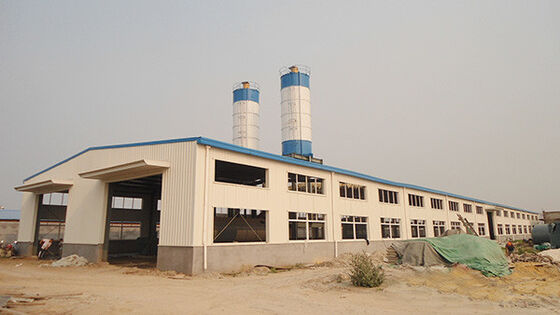

Q235 Q355B Carbon Steel Structure Building For Warehouse Workshop Construction 1

Features of Steel Structure Building

High strength and stability - Welded pipes and H-beams are both made of high-strength steel with high tensile strength, capable of withstanding large loads and forces
Corrosion resistance - Steel structural products that have undergone surface treatment can effectively prevent corrosion and oxidation
Installation convenience - The design of steel structure products takes into account the convenience of installation
Diversified specifications - The specifications of steel structure products can be adjusted and customized according to different needs
Production and Quality Control - Each H-beam product undergoes strict quality inspection procedures to ensure compliance with national standards and customer requirements

The Uses of Steel Structure Building

Industrial Warehouses - Steel structure buildings are commonly used as warehouses for storage and distribution purposes due to their large clear spans and ability to accommodate heavy loads
Commercial Buildings - Steel structures are ideal for commercial buildings such as shopping malls, office complexes, offering customizable spaces and flexible design options
High-Rise Buildings - Steel's high strength-to-weight ratio makes it suitable for constructing tall buildings, including schools, and office skyscrapers
Industrial Plants - Factories and manufacturing plants utilize steel structures to house machinery, production lines, and storage areas, providing a safe and efficient working environment
Exhibition Halls and Convention Centers - Steel structures offer the flexibility to create large exhibition spaces for trade shows, conventions, and public events

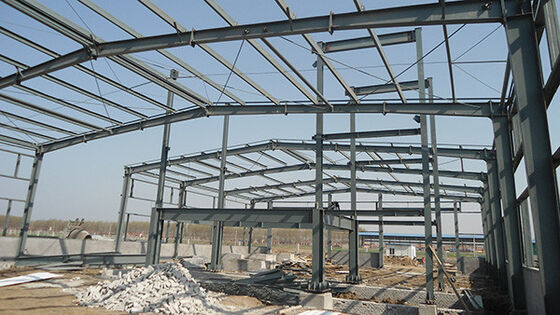

Q235 Q355B Carbon Steel Structure Building For Warehouse Workshop Construction 2

Design and Quote

Let us know the following information, we can design your steel structure building. Or you have drawings, we can quote for you directly.

Size of the building, length*width*eave height*ridge height
Max. wind speed on site
Max. snow load if have snow
Roof and wall material, color steel sheet or sandwich panel
Need crane or not; if need, the specification need to provide
Steel structure surface treatment, painted or galvanized

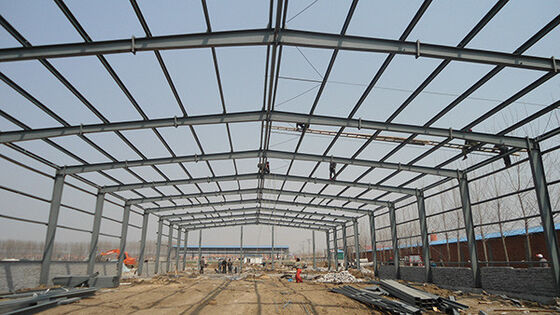

Q235 Q355B Carbon Steel Structure Building For Warehouse Workshop Construction 3

Product Process

Material Cutting - Steel sheets and sections are accurately cut into the required sizes and shapes using advanced cutting techniques, such as automatic laser cutting machine
Assembly - The treated components are assembled and connected according to the design specifications, ensuring precise alignment and structural integrity
Welding - Steel components are welded together using welding machines to form the structural framework of the building
Surface Treatment - The welded components undergo surface treatment processes, such as cleaning, sandblasting, and painting, to enhance their durability and corrosion resistance
Inspection - Rigorous inspections are conducted throughout the production process to ensure quality control and adherence to design standards

Q235 Q355B Carbon Steel Structure Building For Warehouse Workshop Construction 4

Q235 Q355B Carbon Steel Structure Building For Warehouse Workshop Construction 5

Packaging and Shipping

Our packaging and transportation methods are customized to meet the specific requirements of each product. Typically, we utilize pallets for packaging, and we also offer the option of bulk shipment, then loaded into shipping containers. These containers will be transported to the port. We follow FOB or CIF trade terms to ensure the safe and timely delivery of goods to our customers.

Q235 Q355B Carbon Steel Structure Building For Warehouse Workshop Construction 6

FAQ

Are you factory? Yes, our factory produce and sell steel structures many years. We have a lot of experience at the steel building manufacturing area.
How about the delivery time? Usually, within 30-55 days after the order confirmed, also depends on the fabrication quantity.
What trade terms do you usually use? We use FOB, CIF, C&F. These are all negotiable.
How to install it? We will furnish you the detailed construction drawing and the construction manual which could help you to erect and install the building step by step. We can also send engineers to your local to guide the installation if needed.
What is your terms of payment? 30% deposit is paid in advance, and the balance is paid before shipment; it can be negotiated according to specific projects.

Any request for steel building, please no hesitate to contact Della by followings:

Contact: Della

Email: della@qdxgz.cn

Mobile/Whatsapp/Wechat: +8615898860020
