Steel Structure Prefab Commercial Retail Buildings For Businesses

Steel Structure Prefab Commercial Retail Buildings For Businesses

Brand Name:	XGZ
Model Number:	XGZ-SCB003
MOQ:	100 square meters
Price:	USD 45-150 per square meter/Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

CE,ISO9001,GOST,AISC

Name:

Commercial Building

Raw Material:

Steel

Color:

Customized Color

Surface Treatment:

Painted,Galvanized

Structure Type:

Light Steel Structre

Certificate:

CE,ISO9001, EN-ISO3834

Main Frame:

Sqaure Tube And H Section Steel

Wall & Roof Panel:

Sandwich Panel

Packaging Details:

Steel pallet

Highlight:

Prefab Commercial Retail Buildings

Commercial Retail Buildings Steel Structure

Commercial Prefab Buildings Steel Structure

Product Description

Steel Structure Prefab Commercial Retail Buildings For Businesses

Versatile And Durable Steel Structure Commercial Building For Businesses

Product Description

Steel structure office building is composed by square tube columns, steel roof and platform beam, steel decking board, roof cladding, wall cladding and accessories like studs, bolts, etc. Aluminium windows, door, glass curtain wall, plaster board ceiling and floor tiles can be also provided if needed. As a rising prefabricated buildings, steel structures differs from precast concrete in that its main load-bearing components are all made of steel, consisting of steel beams, columns, trusses and other components made of section steel and steel plates. Each component is usually connected by weld seams, bolts or rivets on site.

Product Parameter

Main frame: Primary members are the main load carrying and support members of a steel structure office building. The main frame members include columns, beams and other supporting members. The shape and size of these members vary based on the application and requirements.
Roof and wall cladding: Roof can be sandwich panel, stone painted sheet or pouring concrete depending on roof slope and customers' requirement. Wall is usually PU sandwich panel or rock wool sandwich panel for nice appearance and good heat insulation.
Steel decking board: For the floor of multi-storey steel structure office building, its effective width is 688mm or 750mm. Decking board is on steel platform as form board and support of concrete.

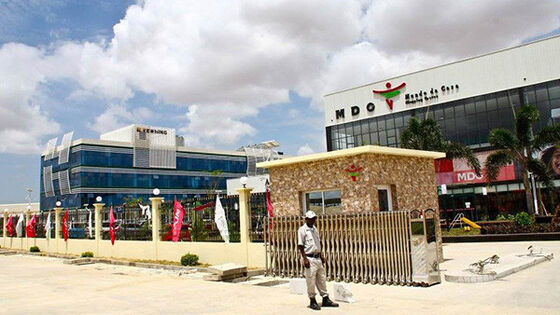

Steel Structure Prefab Commercial Retail Buildings For Businesses 0

Item	Specification
Main Frame	Steel column: Q355B welded H section steel/hot-rolled H section steel Steel beam: Q355B welded H section steel/hot-rolled H section steel Steel decking floor: V688 section Steel purlin: C/Z section purlin or square tube column
Wall Part	Wall panel and framework: PVDF,PU,75mm Rock Wool Glass curtain wall and framework: 6+12+6 Tempered insulating glass Canopy: 6+1.14PVB+6 Tempered laminated glass Downpipe: PUC Top cover: Aluminium plate Window cover: PVDF Self-tapping screw: M6.3 Gutter: Stainless steel gutter/UPVC gutter
Standard Part	High strength bolt: M20 Galvanized bolt: M12 M24 nut: M24 Accessories: Rivet,sealant,etc
Others	Door: Aluminium door Window: Aluminium window

Application

Office building
Supermarket
Exhibition hall
Shopping mall

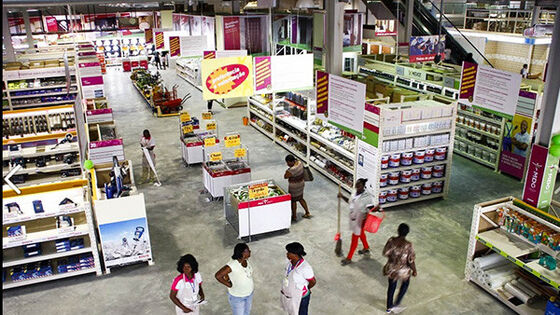

Steel Structure Prefab Commercial Retail Buildings For Businesses 1

Product Advantages

Light in weight, high in strength and large in span
Short construction period and reduced investment cost
High fire resistance and strong corrosion resistance
Easy to move, no pollution recovery and good environmental protection
Low investment in construction with economic benefits

Design & Quote

We can help your idea drawing come true. If not drawing yet, after clarifying the following information, we can prepare drawing accordingly for you.

Project Progress: Is Land Purchased? Is it licensed by the government?
Usage: For office building, supermarket, shopping mall, exhibition hall?
Location: In which country will it be built?
Local Climate: Wind speed, Snow load (max. Wind speed)
Design: Please provide the design drawing. Or do you need us to design for you?
Dimension: Length*width*height
Roof and Wall: Determine the panel material, such as color steel panel, and metal sandwich panel.
Windows and Doors: What material, quantity, and type?

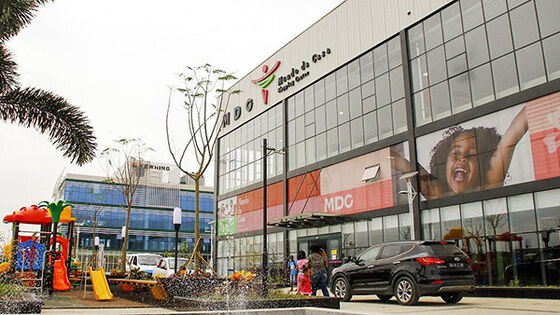

Steel Structure Prefab Commercial Retail Buildings For Businesses 2

Products Processing

Cutting: Steel components are precisely cut to required dimensions using advanced cutting techniques like Automatic laser cutting machine.
Assemble: The cut steel pieces are fitted together according to engineering drawings and specifications.
Welding: Various welding techniques are employed to join the steel components securely, enhancing load-bearing capacity.
Rust removal: Techniques like sandblasting, shot blasting, or chemical cleaning are used to eliminate corrosion.
Surface treatment: Spray painting or hot-dip galvanizing according to customer's requirements.

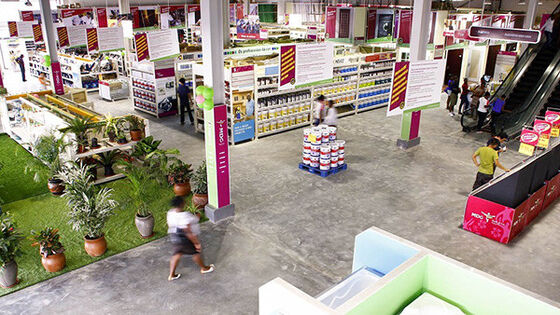

Steel Structure Prefab Commercial Retail Buildings For Businesses 3

Packaging and Shipping

Packaging Detail: The packing method for main steel frame will use steel pallet, which protects steel frame and makes loading/unloading faster. Other parts packed in parcels such as steel purlin and steel sheet, all loaded into 40ft HQ. Safe and easy handle.

Steel Structure Prefab Commercial Retail Buildings For Businesses 4

Why choose us?

Professional engineers with over 10 years experience in architecture field
One stop service including construction drawing, calculation sheet, foundation design, and 3D drawings
Extra bolts, purlins, panels provided in case of installation damage
High efficiency in communication and problem solving
Over 40 sets of large precise processing equipment
Detailed packing list for every container
Commitment to quality and customer satisfaction

With a track record of serving 10,000+ overseas projects, we have built comprehensive end-to-end capabilities in steel structure design, manufacturing, and construction.

FAQ

What kind of company you are?

We are steel structure building Manufacturer located in Qingdao China.

What are your main products?

Our main products have steel structure, warehouse, workshop, factory, office building, hangar, garage, poultry house...

How to get a quote from you?

You can contact us online or by email. If you have drawings, we can quote according to your drawings. Otherwise please provide length, width, eave height and local weather for exact quotation and drawings.

Do you offer service for installation?

We provide detailed construction drawing and manual. We can also send engineer to help with installation if needed.

What's the payment term?

30% deposit and 70% balance before shipment.
