products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Prefab Commercial Buildings
Created with Pixso.

Supermarket Prefab Commercial Buildings Painted / Galvanized Steel Frame Office Buildings

Supermarket Prefab Commercial Buildings Painted / Galvanized Steel Frame Office Buildings

Brand Name: XGZ
Model Number: XGZ-SCB011
MOQ: 100 square meters
Price: USD 45-150 per square meter/Negotiable
Payment Terms: T/T,L/C,Western Union,MoneyGram
Supply Ability: 30000 tons per month
Detail Information
Product Description
Detail Information
Place of Origin:
Qingdao,China
Certification:
CE,ISO9001,GOST,AISC
Name:
Commercial Building
Raw Material:
Steel
Color:
Customized Color
Surface Treatment:
Painted,Galvanized
Structure Type:
Light Steel Structre
Certificate:
CE,ISO9001, EN-ISO3834
Main Frame:
Sqaure Tube And H Section Steel
Wall & Roof Panel:
Sandwich Panel
Packaging Details:
Steel pallet
Highlight:

Supermarket Prefab Commercial Buildings

,

Painted Steel Frame Office Buildings

,

Galvanized Steel Frame Office Buildings

Product Description
Prefab Steel Structure Commercial Buildings
Steel commercial buildings feature load-bearing structures made of section steel and steel plates, including beams, columns, and trusses. These structures are complemented by roof, floor, and wall enclosure systems.

Product Specifications
Component Specification
Main Structure
Column Q355/Q235 H-steel, Box column available
Beam Q355/Q235 H-steel
Surface Processing 1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120μm thickness)
2. Hot dip galvanization
Sub Structure
Purlin Q355B, C/Z steel section, galvanization 275g/m²
Angle Brace Q235B, L-steel
Cross Bracing Q235B round bar, L-steel
Tie Bar Q235B, round pipe
Batter Brace Q235B, round bar
Roof System Options
  • Insulated sandwich panel (PU, rock wool, glass fiber, EPS) with steel sheet sides (50mm/75mm/100mm thickness)
  • Steel plate options (0.4mm/0.5mm/0.6mm thickness)
  • Gutter options: Galvanized steel (2.0mm/2.5mm/3.0mm) or pre-finished steel (0.4mm/0.5mm/0.6mm)
  • PVC down spout
  • Additional options: Roof skylight (1.8mm PVC sheet) and stainless steel ventilator
Wall System Options
  • Insulated sandwich panel (similar to roof options)
  • Steel plate options
  • Brick wall (client-provided)
  • Door options: Roller door, sliding door, access door (steel or glass)
  • Window options: PVC or Aluminum frame (fixed, swing, sliding, louver)

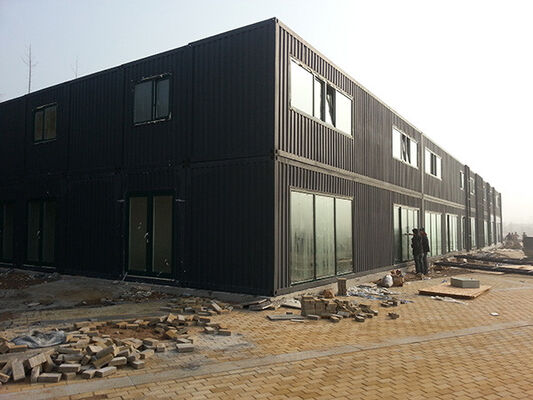

Supermarket Prefab Commercial Buildings Painted / Galvanized Steel Frame Office Buildings 0


Key Advantages
  • Cost Savings: 25% lower per square meter than conventional buildings with reduced site erection costs
  • Quality Control: Factory-designed and fabricated with strict quality standards
  • Quick Erection: Pre-fabricated components enable fast bolt-together assembly
  • Flexibility: Customizable designs with easy future expansion
  • Energy Efficiency: Environmentally friendly solution with CO₂ reduction and recyclability

Design & Quotation Process
Please provide these details for an accurate quote:
  • Project location
  • Building dimensions (length × width × eave height)
  • Mezzanine requirements (if any) including load capacity
  • Roof and wall material preference
  • Environmental factors (snow load, wind speed)
  • Crane requirements
  • Any special requirements

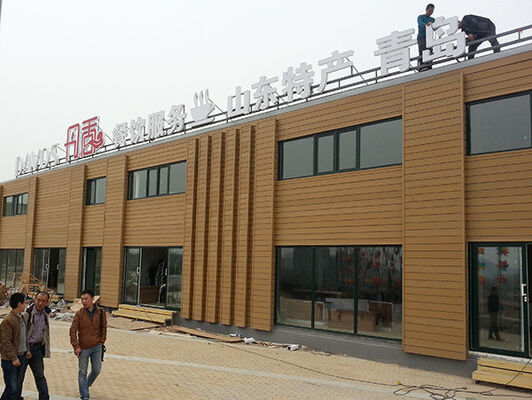

Supermarket Prefab Commercial Buildings Painted / Galvanized Steel Frame Office Buildings 1


Project Implementation Process
  1. Inquiry: Customer expresses project interest
  2. Design & Quotation: Custom solution development
  3. Approval: Customer confirms design and quote
  4. Manufacturing: Factory production with quality control
  5. Shipping: Secure packaging and logistics
  6. Installation Support: Comprehensive guidance provided

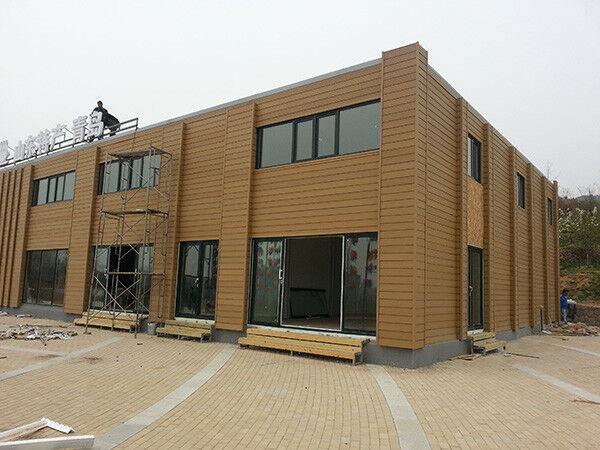

Supermarket Prefab Commercial Buildings Painted / Galvanized Steel Frame Office Buildings 2


Frequently Asked Questions
Are you a manufacturer or trading company?
We operate our own steel structure, steel sheet, and sandwich panel manufacturing facilities.
Do you provide design services?
Yes, our engineering team can create architectural, structural, and installation drawings at each project phase.
What is the typical delivery time?
Production typically completes within 30-55 days depending on order quantity.

Contact Information
Contact: Della
Email: della@qdxgz.cn
Phone/WhatsApp/WeChat: +8615898860020
