ASTM Multi Storey Steel Structure Building , Prefab Commercial Construction

ASTM Multi Storey Steel Structure Building , Prefab Commercial Construction

Brand Name:	XGZ
Model Number:	XGZ-SCB007
MOQ:	100 square meters
Price:	USD 45-150 per square meter/Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

CE,ISO9001,GOST,AISC

Name:

Multi Storey Steel Structure Building

Material:

Steel

Surface Treatment:

Hot Dip Galvanised Or Painted

Grade:

Q235, Q355B

Standard:

AiSi, ASTM, BS, DIN, GB, JIS

Keyword:

Steel Structure Commercial Building

Packaging Details:

Steel pallet

Highlight:

ASTM Multi Storey Steel Structure Building

Prefab Commercial Construction Building

Multi Storey Prefab Commercial Construction

Product Description

Customizable Q355B Prefabricated Steel Buildings Commercial

Product Description

Steel structure commercial building is composed by square tube columns, steel roof and platform beam, steel decking board, roof cladding, wall cladding and accessories like studs, bolts, etc. Aluminium windows, door, glass curtain wall, plaster board ceiling and floor tiles can be also provided if needed.

As a rising prefabricated building solution, steel structures differ from precast concrete in that their main load-bearing components are all made of steel, consisting of steel beams, columns, trusses and other components made of section steel and steel plates. Each component is typically connected by weld seams, bolts or rivets on site.

Product Specifications

The main components of steel structure commercial building are:

Main Frame: Includes columns, beams and supporting members designed in accordance with international codes (GB, IS) using Q235/Q355B welded H section steel.
Roof and Wall Cladding: Options include sandwich panels, stone painted sheets or concrete depending on requirements.
Steel Decking Board: Floor solution for multi-storey buildings with effective widths of 688mm or 750mm.

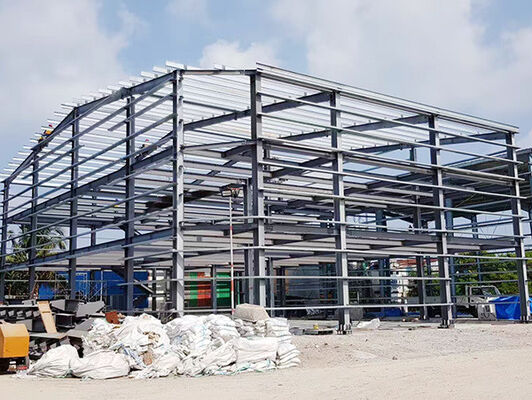

ASTM Multi Storey Steel Structure Building , Prefab Commercial Construction 0

Item	Specification
Main Steel Frame - Column	Q235, Q355B Welded H Section Steel
Main Steel Frame - Beam	Q235, Q355B Welded H Section Steel
Steel decking floor	V688 Section
Secondary Frame - Purlin	Q235B C and Z purlin
Maintenance System - Roof panel	1. EPS Sandwich Panel 2. Glass Fiber Sandwich Panel 3. Rock Wool Sandwich Panel 4. Pu Sandwich Panel 5. Steel Sheet
Accessories - Window	1. Aluminium Alloy Window 2. PVC Window 3. Sandwich Panel Window

Applications

Steel structure commercial buildings are used in various sectors:

Office Buildings - Flexible spaces for multi-floor complexes
Warehouses and Distribution Centers - Large storage spaces
Manufacturing Plants - Ample floor space for production
Exhibition Halls - Vast spaces for events and trade shows

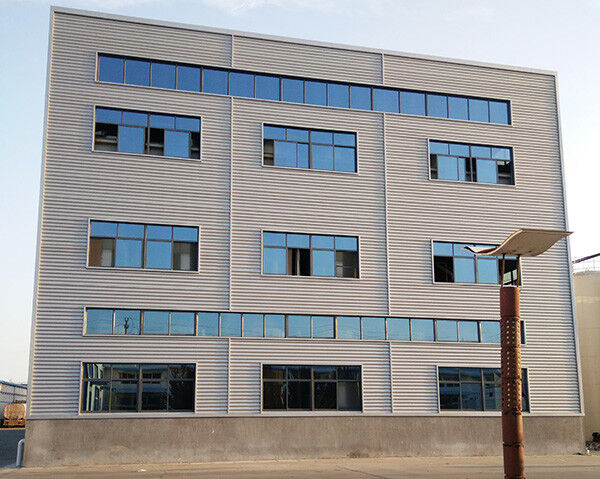

ASTM Multi Storey Steel Structure Building , Prefab Commercial Construction 1

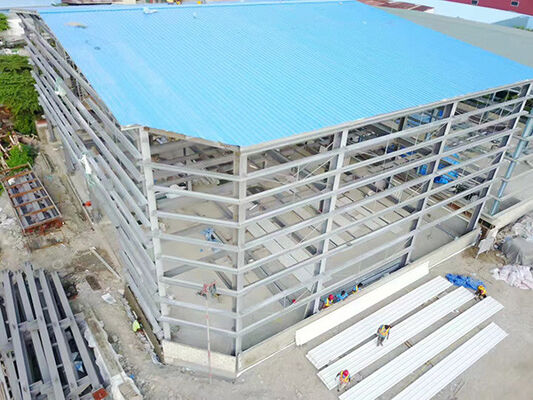

ASTM Multi Storey Steel Structure Building , Prefab Commercial Construction 2

Product Advantages

Fully customizable to meet specific needs and budgets
High strength-to-weight ratio for structural efficiency
Excellent toughness and plasticity with uniform material properties
Reduced construction time and labor costs
Environmentally friendly and reusable materials

Design and Quotation

We provide complete design services and quotations based on your project requirements. Please provide:

Project progress and licensing status
Intended usage (warehouse, factory, office, etc.)
Location and local climate conditions
Building dimensions and crane requirements
Preferred materials for roof, walls, windows and doors

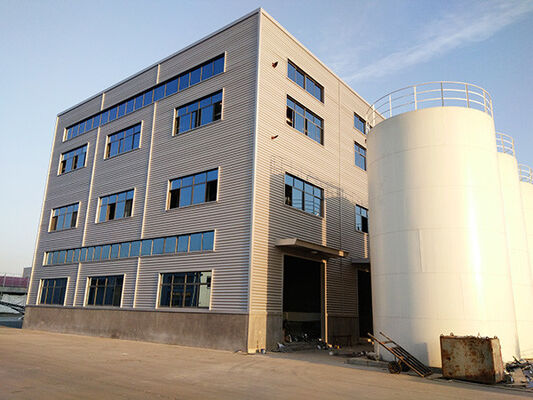

ASTM Multi Storey Steel Structure Building , Prefab Commercial Construction 3

Packaging and Shipping

Main steel frames are securely packed on steel pallets for efficient transport. Other components are carefully packaged in parcels for container shipping, ensuring safe handling throughout the process.

ASTM Multi Storey Steel Structure Building , Prefab Commercial Construction 4

Installation Process

Our steel buildings follow a precise installation sequence:

Anchor bolt pre-embedding with ±5mm precision
Column installation with continuous welding
Floor platform assembly according to beam plans
Roof beam installation with proper welding
Final installation of purlins, stairs and decking
Gutter and water funnel placement

ASTM Multi Storey Steel Structure Building , Prefab Commercial Construction 5

ASTM Multi Storey Steel Structure Building , Prefab Commercial Construction 6

Frequently Asked Questions

Are you a manufacturer?
Yes, we operate our own factory and offer competitive pricing.

How to get a fast quotation?
Provide building type, size, and material requirements for immediate pricing.

Do you offer on-site installation guidance?
Yes, we provide detailed installation drawings and can send technical engineers for supervision.

Do you offer design services?
Yes, we create complete solution drawings using AutoCAD, PKPM, Tekla Structures and other professional software.

What is the delivery time?
Typically 30-55 days after deposit receipt, depending on order quantity.
