Affordable Heavy Steel Structure Construction With Vertical Columns / Horizontal Beams

Affordable Heavy Steel Structure Construction With Vertical Columns / Horizontal Beams

Brand Name:	XGZ
Model Number:	XGZ-HSS009
MOQ:	100 square meters
Price:	USD 30-80 per square meter/Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Pingdu, Qingdao

Certification:

CE EN1090,ISO9001,GOST,AISC

Name:

Heavy Steel Structure

Application:

Warehouse,Workshop,Factory

Material:

Q235B,Q355B

Drawing Design:

AutoCAD,Sketchup,Tekla

Installation:

Installation Videos，Engineer Guidance

Standard:

International Standard

Packaging Details:

Steel pallet

Highlight:

Affordable Heavy Steel Structure

Heavy Steel Structure Construction

Heavy Structural Steel Construction

Product Description

Affordable Heavy Steel Structure Buildings For Budget-Friendly Construction

What is heavy steel structure building?

Compared with traditional buildings like concrete or wood structures, heavy steel structure buildings are a new quick-installed building solution. The structure mainly comprises steel columns, beams, trusses, bracing, purlins, U channels, angle steel, and steel plates, connected together by welding, bolts, and rivets to form a complete frame.

Steel frames typically consist of vertical columns and horizontal beams bolted or welded together. Steel columns are vertical structural members that transfer compressive loads, forming the skeleton of a building. Steel beams are horizontal structural members that resist lateral loads. All structural steel framing is designed, fabricated, and erected according to applicable safety standards.

Product Parameters

The steel components of heavy steel structure buildings are fully customizable. We design according to customer needs and local conditions including wind pressure and snow load, using steel components with appropriate strength.

Primary Framing

Main steel frame components include steel beams, columns, and trusses made from section steel and steel plates, with rust removal and anti-rust treatments like shot blasting, painting, and galvanizing. Members are connected by welding, bolts, or rivets.

Secondary Framing

Secondary members connect the main frame and help resist longitudinal loads like wind and earthquakes. Steel purlins are available in 1.8mm to 3.0mm thickness with galvanized coating. Column bracing ensures overall stability and transfers horizontal forces.

Roof and Wall Cladding System

Steel sheets feature galvanized or aluminum-zinc bases with organic coating for corrosion resistance, appearance, and cost-effectiveness. Sandwich panels combine steel sheets with insulated cores (EPS, fiberglass, rock wool, or polyurethane).

Heavy Steel Structure Components
Steel Structure Parts (Q235 or Q355) Hot galvanized or painted	Steel Column: H Section Steel Steel Beam: H Section Steel Withstand Wind Column: H Section Steel Connected Beam: Circular Tube Roof Purlin: Cold formed galvanized C/Z Section Steel Wall Purlin: Cold formed galvanized C/Z Section Steel End Wall Purlin: C/Z Section Steel
Panel Material Parts	Wall panel: EPS sandwich panel Rockwool sandwich panel Corrugated Galvanized Steel sheet Roofing panel: EPS sandwich panel Rockwool sandwich panel Corrugated Steel Sheet with optional insulation
Door and Window	External Door: Over-heat Orbit Sliding Door (double open) Galvanized steel power-operated Roller Door Internal Door: EPS sandwich panel Window: PVC or aluminum alloy frame with glass
Drainage Parts	Galvanized water channel PVC Down spout with accessories
Supporting Part	Purline draw bar: ∅12 Horizontal Bracing: ∅20 Circular Tube Angle steel: L Steel Roof tie bar: ∅89*3.5
Others	Ventilating device Crane beam Canopy Bolts: Foundation, High strength, Normal

Production Features

Cost Savings: 25% lower per square meter than conventional buildings with reduced site erection costs
Quality Control: Factory-designed and fabricated with strict quality processes including engineering and manufacturing
Quick Erection: Pre-fabricated components with bolt connections enable fast, step-by-step installation
Flexibility: Customizable designs, easy future expansion, and low transportation costs
Energy Efficiency: Environmentally friendly solution with CO2 reduction and recyclability

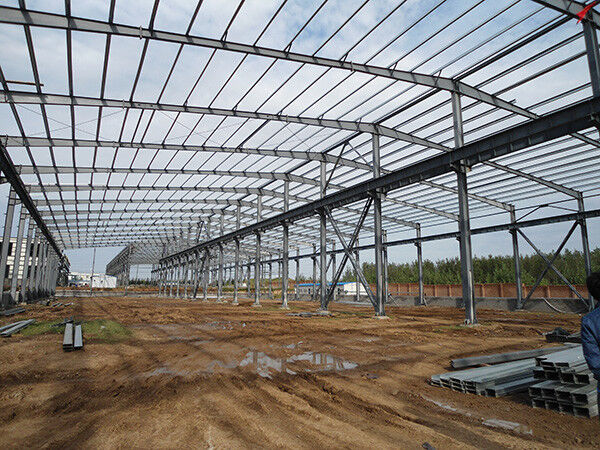

Affordable Heavy Steel Structure Construction With Vertical Columns / Horizontal Beams 0

Design and Quote

We transform your ideas into reality. If you don't have drawings, we'll prepare them after confirming these details:

Project site location
Overall dimensions (length × width × eave height)
Mezzanine requirements (if any) including load capacity
Wall type preference (single-layer steel or sandwich panel)
Snow load requirements (if applicable)
Wind speed/load specifications
Interior column allowance
Overhead crane needs including capacity
Any other special requirements

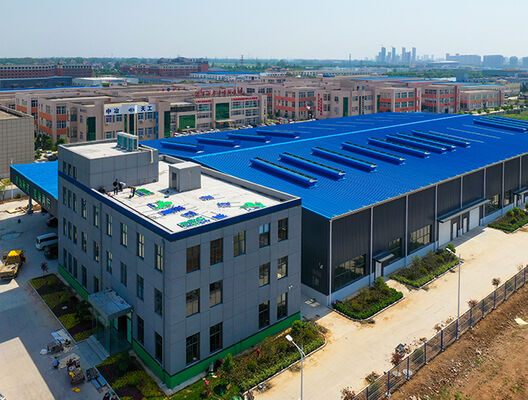

Affordable Heavy Steel Structure Construction With Vertical Columns / Horizontal Beams 1

Project Cases

Qingdao Xinguangzheng holds CE certification (EN1090), International Ordinary Steel Structure High-grade Certificate, and China Overseas Contract Project Operation Qualification. We serve global markets with partners in over 100 countries including Canada, Australia, Germany, France, Brazil, England, and the USA.

With a track record of serving 10,000+ overseas projects, we have built comprehensive end-to-end capabilities in steel structure design, manufacturing, and construction. This has solidified our profound international project expertise, providing reliable assurance for global clients.

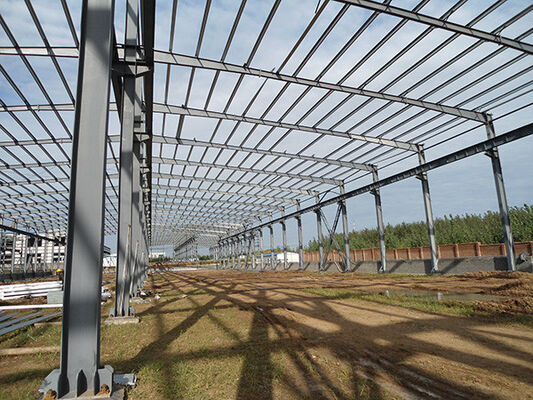

Affordable Heavy Steel Structure Construction With Vertical Columns / Horizontal Beams 2

Project Process

Customer inquiry initiates the process
Design and quotation phase with tailored solutions
Factory manufacturing after project approval
Shipping to customer's country for installation (with construction drawings, videos, and online guidance)
Optional on-site installation support by our technicians
Project completion after installation

Our Company Services

We provide comprehensive one-stop solutions:

Custom design plans and construction drawings using Tekla, PKPM, 3D3S
Professional consultation services
Budget offers for contractors
Customized transportation and delivery
Fabrication with shot blasting and painting options
Erection and installation services with optional on-site guidance

Frequently Asked Questions

1. What kind of company are you?

We are a steel structure building manufacturer located in Qingdao, China, with our own factory. We welcome visits to showcase our quality control processes and offer competitive pricing.

2. Do you offer designing service for us?

Yes, we provide complete design solutions using AutoCAD, PKPM, MTS, 3D3S, Tarch, and Tekla Structures (Xsteel).

3. Can you send engineers to install my structures?

We provide detailed installation drawings and videos free of charge, and can dispatch engineers as installation directors upon request.

4. Do you accept container loading inspection?

Yes, we welcome inspectors at any time.

5. How long does it take to get my building?

Lead times vary but typically include 2 weeks for drawings and 30-55 days for delivery (depending on project complexity).
