Large Span Heavy Steel Structure Fabrication Q235B Q355B Steel Fabricated Building

Large Span Heavy Steel Structure Fabrication Q235B Q355B Steel Fabricated Building

Brand Name:	XGZ
Model Number:	XGZ-HSS006
MOQ:	100 square meters
Price:	USD 30-100 per square meter/Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Pingdu，Qingdao，China

Certification:

CE EN1090,ISO9001,GOST,AISC

Name:

Heavy Steel Structure Fabrication

Application:

Warehouse, Workshop, Factory, Office Building

Size:

According To Customer Requirement

Drawing Design:

AutoCAD, Sketchup, Tekla

Installation:

Installation Videos，Engineer Guidance

Standard:

International Standard

Packaging Details:

Steel pallet

Highlight:

Large Span Heavy Steel Structure Fabrication

Q235B Steel Fabricated Building

Q355B Steel Fabricated Building

Product Description

Circular Steel Tube Heavy Steel Structure Q235B Q355B Material

Advanced Design Heavy Steel Structure Buildings Construction For Various Dimension

Product Description

Heavy steel structure building for industrial and commercial projects are steel structures built over structural concepts of primary members, secondary members, roof and wall cladding connected to each other and kinds of other components. These buildings can be provided with different structural and non-structural additions such as skylights, wall lights, turbo vents, ridge ventilators, louvers, roof monitors, doors & windows, trusses, mezzanine floors, fascias, canopies, crane systems, insulation etc., based on the customer's requirements. All the steel buildings are custom designed to be lighter in weight and higher in strength. Thus steel building designs have become more flexible, durable and adaptable over the last decades of years which has made steel one of the preferred materials for building construction.

Product Parameter

The heavy steel structure building mainly includes following parts:

Primary Framing

Main steel frame is mainly composed of steel beams, steel columns, steel trusses and other components made of section steel and steel plate, and adopts rust removal and anti-rust process such as shot blasting, painting and galvanizing. Welding, bolts or rivets are usually used to connect each member or component.

Secondary Framing

Secondary members connect the main frame and help in resisting part of the longitudinal loads that are applied on the building such as wind and earthquake loads.
Steel purlin is available in 1.8 mm, 2.0 mm, 2.2 mm, 2.5 mm and 3.0 mm thickness. The purlin come with a galvanized sheet.
Column bracing is a connecting member set between two adjacent columns to ensure the overall stability of the building structure, improve lateral stiffness and transfer longitudinal horizontal force.

Roof and Wall Cladding System

Steel sheet, its base sheet is usually be galvanized sheet or aluminium zinc sheet with organic coating. It has the advantages of good corrosion resistance, bright color, beautiful appearance, convenient processing and forming, and has the original strength of the steel plate and low cost.
The thickness of steel sheet usually be 0.3mm-0.7mm and used in different building and requirement.
Sandwich panel is composite insulation panel made by two sides steel sheet and heat insulated core material through binder (or foam). The core can be EPS (polystyrene), fiberglass wool, rock glass wool and PU (polyurethane), thickness 50mm, 60mm, 75mm, 100mm, 150mm, 200mm, etc.

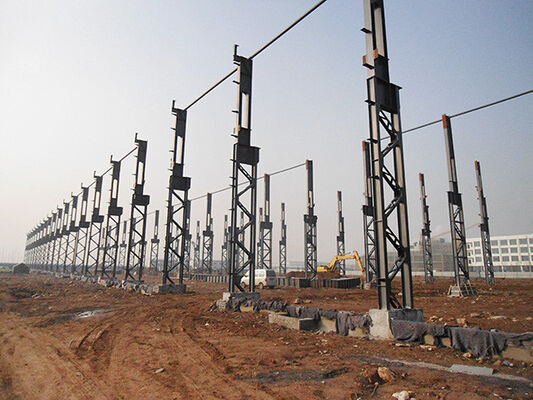

Large Span Heavy Steel Structure Fabrication Q235B Q355B Steel Fabricated Building 0

Name	Heavy Steel Structure
Main Steel	Column: Q235, Q355 H Beam Steel Section or Welded Steel Section Beam: Q235, Q355 H Beam Steel Section or Welded Steel Section
Secondary Steel Frame	Purlin: Q235 C and Z galvanized channel Angle Brace: Angle Steel Bar Tie Rod: Circular Steel Tube Brace: Q235 Round Bar Vertical and Horizontal Supporting Component: Q235 Angle Steel, Round Bar or Steel Tube
Wall and Roof Cladding	Roof Panel: EPS Sandwich Panel / Fiberglass wool Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel or corrugated Steel Sheet Wall Panel: Sandwich Panel / Corrugated Steel Sheet
Accessories	Window: Aluminium Alloy Window / PVC Window / Sandwich Panel Window Door: Sliding Door / Rolling Shutter Door / Personel Door / Swing Door Gutter + Downspout: Galvanized sheet + PVC Pipe

Production Features

Large span design: Allows for an open internal space, facilitating storage and operation, and is suitable for large equipment and goods.
Fast construction speed: Steel components are prefabricated and assembled on site, shortening the construction cycle and improving engineering efficiency.
Lightweight: Compared to concrete structures, steel structures have a lighter self-weight, reducing foundation loads and lowering construction costs.
Excellent seismic performance: The toughness and ductility of steel ensure superior performance under extreme conditions such as earthquakes, ensuring safety.
Durability: Steel structures treated with corrosion protection can withstand environmental erosion and have a long service life.
High flexibility: They can be flexibly designed and modified according to production needs to adapt to different uses.
Environmental friendliness: Steel is recyclable, aligning with sustainable development requirements and reducing resource waste.
Low maintenance costs: Steel structures require relatively simple maintenance, resulting in low maintenance costs over the long term.

Design and Quote

We can help your idea drawing come true, if not drawing yet, after clear on the following infos, we can prepare drawing accordingly for you.

Project site location
Overall dimension (length*width*eave height)
Mezzanine or not? How many kgs of load per square meter on mezzanine?
Single-layer steel sheet wall or sandwich panel wall
Snow load if applicable
Wind speed/load
Interior column allowed or not
Overhead crane needed or not, capacity?
Any other particular requirements?

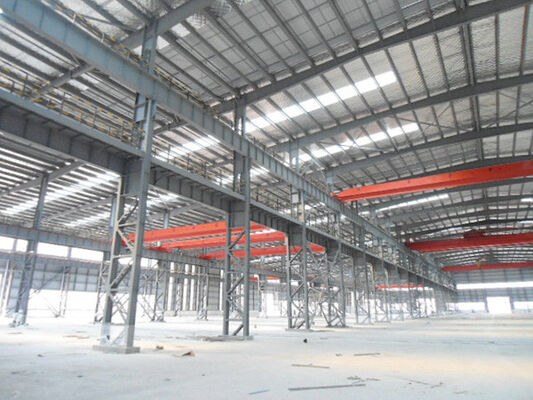

Large Span Heavy Steel Structure Fabrication Q235B Q355B Steel Fabricated Building 1

Project Cases

In order to better serve the global market, Qingdao Xinguangzheng has obtained CE certification (EN1090 certificate), International Ordinary Steel Structure High-grade Certificate and China Overseas Contract Project Operation Qualification Certificate. We face global markets and seek for international development path; Our partners are from Canada, Australia, Germany, France, Brazil, England, America, Ethiopia, Algeria, etc., more than 100 countries over the world.

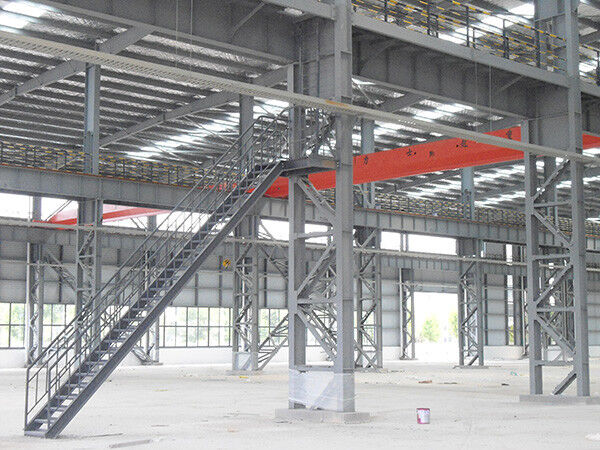

Large Span Heavy Steel Structure Fabrication Q235B Q355B Steel Fabricated Building 2

Project Process

Customer Inquiry: The process begins when a customer submits an inquiry expressing their interest in a steel structure project. We promptly acknowledge the inquiry and gather necessary information about the project requirements.
Design and Proposal: Our team collaborates closely with the customer to develop a customized design that meets their specific needs and objectives. We create detailed drawings and specifications, ensuring all aspects of the project are considered. A comprehensive proposal is then presented to the customer for their review and approval.
Project Confirmation: Upon the customer's approval of the design and proposal, the project moves forward. Contracts are signed, and any necessary adjustments or revisions are made based on the customer's feedback.
Manufacturing and Fabrication: The approved design is sent to our state-of-the-art factory, where skilled technicians and advanced equipment are employed for the manufacturing and fabrication process. Quality control measures are implemented at every stage to ensure precision and adherence to specifications.
Shipping and Logistics: Once the steel components are completed, they are carefully packaged and prepared for shipment. We coordinate the logistics to transport the materials to the customer's location, ensuring prompt and secure delivery.
Installation and Support: The customer is provided with comprehensive installation instructions, including detailed drawings and instructional videos. Our team is available to address any questions or concerns during the installation process. If requested, we can also dispatch experienced technicians to provide on-site guidance and supervision.

Our Company

Services of Xinguangzheng Group
Our company can design, fabricate, load and erect the PEB heavy steel structure building according to clients' need.

Make suitable design plan and detail construction drawings according to the land layout area and usage of building by Tekla, PKPM, 3D3S.
PEB heavy steel structure building consultation service.
Budget offers of building for contractor.
Transportation & delivery as your need.
Fabrication, shot blasting & painting as different request.
Erection & installation. Our technician and skilled workers can be on site to guide or install the heavy steel building as need.

Large Span Heavy Steel Structure Fabrication Q235B Q355B Steel Fabricated Building 3

FAQ

1. What kind of company you are?

We are steel structure building Manufacturer located in Qingdao China.

2. What kind of drawing will you provide?

Plan drawing, elevation drawing, sectional drawing, foundation drawing, installation drawing.

3. How can I get a quotation for my project?

Pls no hesitate to send me message here or Email me. I will reply to you ASAP. Welcome to contact me for your building!

4. Can you provide the installation help?

We will provide detailed instruction photos and videos to you. If it is necessary, we will send professional engineers to do the construction guidance, and some skilled workers to help for installation.

5. How long does it take to get my building?

Lead time is vary, but typically 2 weeks of drawings and 30-55 days for delivery (depending on complexity)
