Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction

Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction

Brand Name:	XGZ
Model Number:	XGZ-HSS005
MOQ:	100 square meters
Price:	USD 30-100 per square meter/Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Pingdu，Qingdao，China

Certification:

CE EN1090,ISO9001,GOST,AISC

Name:

Heavy Steel Structure

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Keyword:

Heavy Steel Structure Building

Span:

Customized

Main Frame:

Solid H-shape Steel Beam, Column

Drawing Design:

3D Drawing

Packaging Details:

Steel pallet

Highlight:

Industrial Heavy Steel Structure Building

3D Drawing Heavy Metal Construction

Heavy Steel Structure Construction

Product Description

Efficiently Heavy Duty Steel Structure For Optimal Industrial Solutions

Product Description

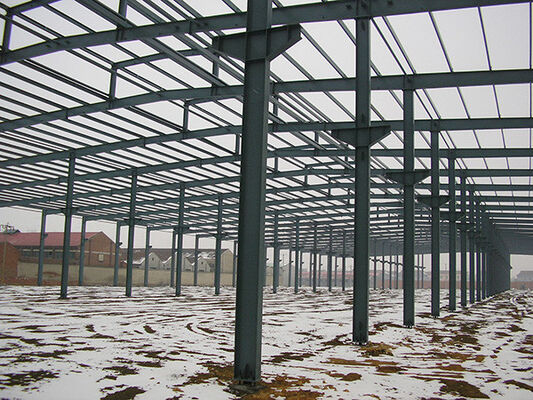

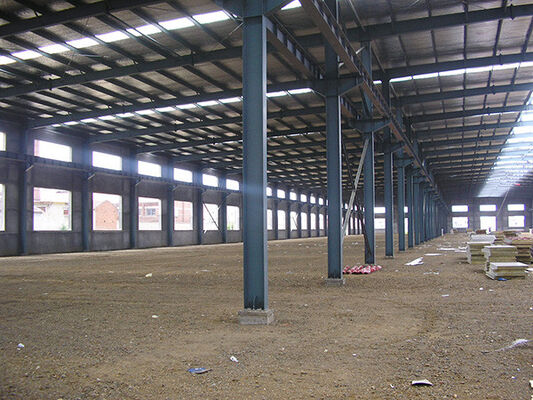

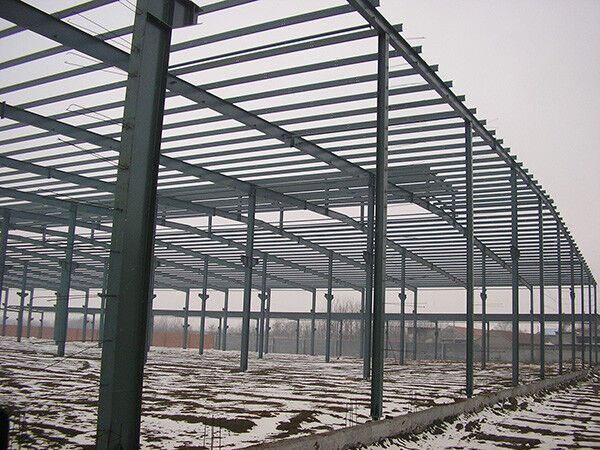

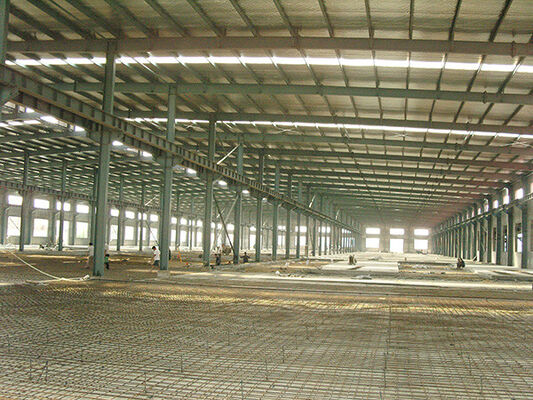

Heavy steel structure building is composed of a series of steel structure members, including H section steel columns, H section steel beams, C/Z section purlins, bracing, and cladding, which form the load-bearing structure of the building.

Heavy steel buildings are in high demand due to their rapid production, easy transport, and fast construction. As a cost-efficient building type, they have become the preferred choice for industrial and commercial construction projects.

We provide accurate budgets, construction plans, and detailed drawings tailored to your specific requirements. All steel structure sections and panels are factory-fabricated to precise dimensions and assembled on-site using bolts and self-tapping screws.

Product Parameters

Main components of heavy steel structure building:

Primary Framing Elements: H-section steel columns and beams (hot rolled or welded), factory-primed with anti-rust surface treatment
Secondary Framing Elements: Purlins and tie bars fixed to columns and beams with common bolts
Bracing: Round steel knee bracing and supporting parts for enhanced stability
Cladding: Color-coated corrugated steel sheets or sandwich panels for weather protection
Windows and Doors: Plastic steel or aluminum-alloy windows; sliding or folding doors
Optional Components: Gutters, downpipes, transparent sheets, ventilators, and bridge cranes

Name	Heavy Steel Structure
Main Steel Frame	H section steel beam and columns, painted or galvanized, galvanized C section or steel pipe
Secondary Frame	Hot dip galvanized C purlin, steel bracing, tie bar, knee brace, edge cover etc.
Roof Panel	EPS sandwich panel, glass fiber sandwich panel, rock wool sandwich panel, and PU sandwich panel or steel sheet
Tie Rod	Circular steel tube
Brace	Round bar
Knee Brace	Angle Steel
Roof Gutter	Color steel sheet

Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction 0

Production Features

Advantages of heavy steel structure building construction:

Quick construction
Foundation cost saving
Environmentally friendly
Sustainable
Affordable
Durable
High strength
Large span capability
Flexible to any shape

Design and Quote

We can provide quotations based on your existing drawings or design a complete steel structure building for you. To receive a customized drawing, please provide:

Location
Size: Length * width * eave height
Wind load (max. wind speed)
Snow load (max. snow height)
Anti-earthquake level
Brick wall requirements (if needed)
Thermal insulation preferences (EPS, fiberglass wool, rockwool, PU sandwich panels, or metal sheets)
Door and window specifications (quantity & size)
Crane requirements (if needed)

Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction 1

Product Processing

Workshop processing steps:

Cutting: Precision cutting of steel components using advanced laser cutting technology
Assemble: Fitting steel pieces according to engineering specifications
Welding: Secure joining of components for enhanced load-bearing capacity
Rust Removal: Surface preparation using sandblasting or chemical cleaning
Surface Treatment: Spray painting or hot-dip galvanizing for corrosion protection

Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction 3

Packaging

Packaging details:

Steel structure components packed in steel pallets with proper protection
Sandwich panels covered with plastic film
Bolts and accessories loaded into wooden boxes
All products packed for safe ocean transport in containers
Professional loading using cranes and forklifts to prevent damage

Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction 4

Installation Process

Key installation steps:

Anchor bolt pre-embedding with ±5mm precision
Steel column installation with continuous welding fillet
Floor platform assembly according to beam plans
Roof beam installation with continuous welding fillet
Roof purlin, steel stair, and decking floor installation
Gutter installation with parallel water funnels

We provide detailed construction drawings and installation manuals. Professional installation guidance is available upon request (additional costs apply).

Industrial Heavy Steel Structure Building , 3D Drawing Heavy Metal Construction 5

Our Advantages

Professional Teams: Experienced engineers and construction specialists
Precision Planning: Comprehensive project preparation to prevent errors
Safety First: Strict adherence to labor safety and quality standards
International Standards: ISO 9001:2015 certified production
Modern Facilities: Advanced technology and machinery
Competitive Pricing: Comprehensive solutions from design to completion
Global Experience: Successful exports to 130 countries worldwide

FAQ

1. What kind of company are you?
We are a steel structure building manufacturer located in Qingdao, China, with our own factory. We welcome visits to showcase our professionalism and offer competitive pricing.

2. How to get a fast quotation?
Provide building type, size, quantity, and material specifications for roof, wall, and floor components.

3. Can you send engineers to install my structures?
We provide free installation drawings and videos, and can send engineers as installation directors upon request.

4. What drawings will you supply?
Plan, elevation, sectional, foundation, construction, and installation drawings.

5. How long does it take to get my building?
Typically 2 weeks for drawings and 30-55 days for delivery (depending on complexity).
