Modern Prefabricated Steel Structure Warehouse Construction Customized

Modern Prefabricated Steel Structure Warehouse Construction Customized

Brand Name:	XGZ
Model Number:	XGZ-SSW015
MOQ:	100 square meters
Price:	USD30-70 Square Meter/Negotiable
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao

Certification:

CE,ISO9001,GOST,AISC

Name:

Steel Structure Warehouse

After-sale Service:

Online Technical Support

Application:

Steel Warehouse, Workshop, Plant

Material:

Steel

Design Style:

Modern

Standard:

GB,EN,ASTM,GOST,JIS,BS,CSA

Specifications:

Customized

Surface Treatment:

Galvanized, Painted

Packaging Details:

Steel pallet

Highlight:

Modern Prefabricated Steel Structure Warehouse

Prefabricated Steel Structure Warehouse Construction

Modern Steel Structure Warehouse Construction

Product Description

Custom Various Span Prefabricated Steel Structure Warehouse Building

Metal frame structure buildings are an increasingly popular choice for warehouses, storage facilities, workshops, hangars, and office buildings. Steel structures offer superior durability and strength compared to conventional brick buildings, with the ability to withstand harsh climates including hurricanes. Their simple bolt-together prefabricated construction allows for easier expansion than traditional brick buildings. The clear span design maximizes usable space efficiency up to 100%.

Key Advantages of Steel Construction

Lightweight: Steel structures are significantly lighter than traditional building materials
Fast Construction: Steel frame warehouses can be erected much faster than conventional buildings
Cost Effective: Savings from reduced construction time, minimal maintenance, and recyclable materials
Eco-Friendly: Made from recycled materials and fully recyclable at end of lifespan

Steel Structure Warehouse Components

Our steel warehouses are constructed with high-quality components designed for durability and performance:

Primary Framing: H-section steel columns and beams (hot rolled/welded) with factory primer and protective coatings
Secondary Framing: Purlin and tie bar systems fixed with common bolts
Bracing: Round steel knee bracing for enhanced structural stability
Cladding: Color-coated corrugated steel sheets or sandwich panels with weather-resistant coatings
Windows & Doors: Plastic steel or aluminum alloy windows; sliding or folding doors
Optional Features: Gutters, downpipes, transparent sheets, ventilators, and bridge cranes

Technical Specifications

Component	Material Specification
Main Structure (Column/Beam)	Q355, Q235B H-steel (Box column available)
Sub Structure (Purlin)	Q355B C/Z steel section
Bracing Systems	Q235B Round bar, L-steel, Round pipe
Roof System	Insulated sandwich panel or steel plate options
Wall System	Insulated panel, steel plate, or brick wall options
Crane Capacity	5T, 6T, 10T, 16T, 30T and other custom options

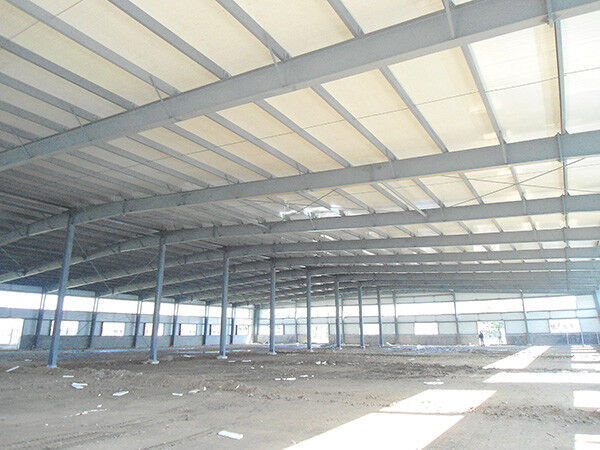

Modern Prefabricated Steel Structure Warehouse Construction Customized 0

Design and Quotation Process

We provide complete design services for your steel warehouse project. For an accurate quote, please provide:

Project location (country and city)
Local maximum wind speed
Snow load requirements (if applicable)
Building dimensions (length × width × eave height)
Preferred roof and wall materials
Window and door specifications (quantity and sizes)

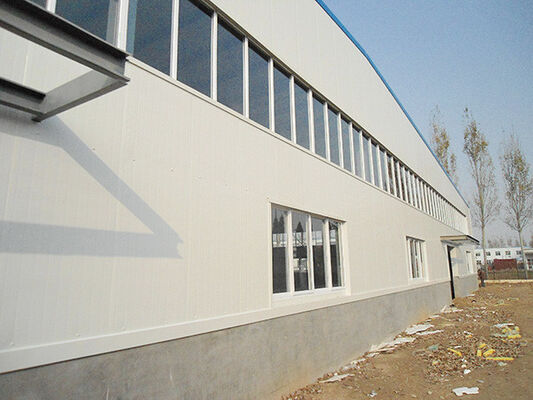

Modern Prefabricated Steel Structure Warehouse Construction Customized 1

Manufacturing Process

Material Preparation: Quality inspection and organization of steel components
Cutting & Shaping: Precision cutting using laser technology and forming processes
Welding & Joining: Arc/gas welding for strong structural connections
Surface Treatment: Shot blasting and painting for corrosion resistance
Packaging & Storage: Careful preparation for transportation

About Qingdao Xinguangzheng Steel Structure Co., Ltd.

Established in 2002 and located in Pingdu City, Qingdao, our company operates across 13.3 hectares with over 1,000 employees. We serve customers in more than 100 countries and regions, having completed over 10,000 projects. Listed on NEEQ in 2015, we maintain 12 professional production lines with an annual capacity of 150,000 tons.

Our capabilities include light/heavy steel structures, large-span trusses, bridge structures, high-rise buildings, and specialized equipment structures. We utilize advanced manufacturing technologies including laser cutting machines, welding robots, and automated production lines.

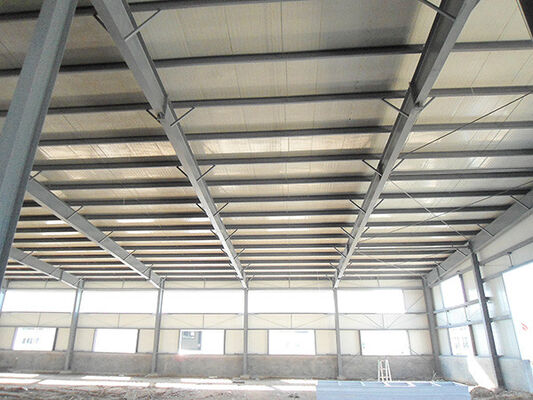

Modern Prefabricated Steel Structure Warehouse Construction Customized 2

Modern Prefabricated Steel Structure Warehouse Construction Customized 3

Modern Prefabricated Steel Structure Warehouse Construction Customized 4

Modern Prefabricated Steel Structure Warehouse Construction Customized 5

Our Services

Custom design solutions using Tekla, PKPM, and 3D3S software
Professional consultation and budget planning
Flexible transportation and delivery options
Custom fabrication with shot blasting and painting
On-site erection and installation support

Frequently Asked Questions

Q: What kind of company are you?
A: We are a professional steel structure manufacturer based in Qingdao, China, with an excellent reputation for quality and service.

Q: Do you offer design services?
A: Yes, our team of 30+ engineers provides complete design solutions using AutoCAD, PKPM, Tekla Structures, and other professional software.

Q: What drawings do you provide?
A: We supply comprehensive drawings including plans, elevations, sections, foundations, construction details, and installation guides.

Q: How do you ensure quality?
A: We maintain CE and ISO9001 certification with strict quality control throughout all manufacturing processes.

Q: What are your packing methods?
A: Components are packed in steel pallets or arranged in bulk as required.

Contact: Della

Email: della@qdxgz.cn

Mobile/WhatsApp/WeChat: +8615898860020
