High Strength Industrial Steel Buildings Large Span Prefabricated Commercial Building

High Strength Industrial Steel Buildings Large Span Prefabricated Commercial Building

Brand Name:	XGZ
Model Number:	XGZ-SIB010
MOQ:	100 square meters
Price:	USD 30-80 per square meter/Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Pingdu,Qingdao

Certification:

CE1090,ISO9001,GOST,AISC

Name:

Industrial Steel Buildings

Type:

Light Steel Frame

Application:

Steel Industrial Building For Warehouse, Workshop

Steel Frame:

Steel Column, Steel Beam

Roof Cladding:

Steel Plate, Sandwich Panel

Drawing Design:

AutoCAD, Tekla, PKPM, 3D3S

Packaging Details:

Steel pallet or in bulk

Highlight:

High Strength Industrial Steel Buildings

Prefabricated Industrial Steel Buildings

Large Span Prefabricated Commercial Building

Product Description

Pre-Engineered Steel Frame Industrial Buildings Large Span Warehouse Workshop

Product Description

What is steel structure building? Compared with traditional building like concrete building, wood building, steel structure building is a new quick installed building structure. The structure mainly comprises steel columns, beams, trusses, bracing, purlins, U channel, angle steel and steel plates, etc. They are connected together to be frame by welding, bolts and rivets.

Steel frame is typically consisting of vertical columns and horizontal beams which are bolted or welded together. Steel columns are vertical structural members that transfer compressive loads. It can be used to form the skeleton of a building. Steel beams are horizontal structural members that resist loads applied laterally to their axis. Structural steel framing is typically designed, fabricated and erected in accordance with applicable standards to ensure its safety.

All steel structure buildings' components are detailed and manufactured in the factory. To cut, drill and weld strictly following the manufacturing drawings to ensure that the structure tolerance is less than 2mm.

Product Parameters

The steel structure industrial buildings is a customized product. No matter what kind of building, our engineers will help you design it. We source raw materials from the largest steel factories in China and select them according to the following requirements:

Higher strength: the bearing capacity of the structures is large, the required section is small, the weight of the structures is light
Better plasticity and toughness: good plasticity, not easy to brittle failure; Good toughness, conducive to bear dynamic load
Good machining performance and durability: including welding ability, cold bending performance and corrosion resistance

Items	Specification
Main Steel Frame	Column: Q235, Q355 Welded H Section Steel Beam: Q235, Q355 Welded H Section Steel
Secondary Frame	Purlin: Q235 C and Z purlin Knee brace: Q235 Angle Steel Tie Rod: Q235 Circular Steel Pipe Brace: Q235 Round Bar Vertical and Horizontal Support: Q235 Angle Steel, Round Bar, Steel Pipe
Maintenance System	Roof Panel: EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet Wall Panel: EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Accessories	Window: Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window Door: Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door Rainspout: PVC

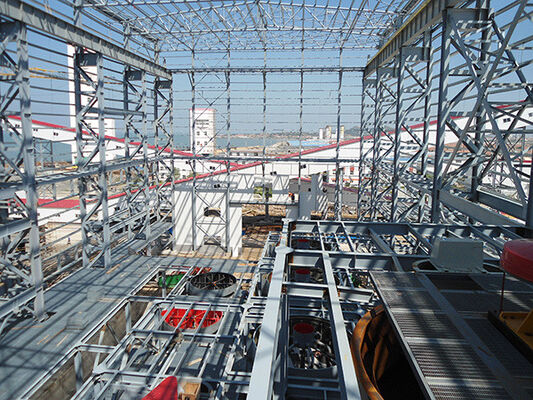

High Strength Industrial Steel Buildings Large Span Prefabricated Commercial Building 0

Application

Single-Span Structures: These are steel buildings with a single clear span, meaning they have a single uninterrupted space without columns or supports in the middle. Single-span structures are commonly used for small to medium-sized buildings like garages, workshops, and small warehouses.
Multi-Span Structures: Multi-span steel buildings have multiple spans, typically supported by columns or intermediate supports. This category includes buildings like large warehouses, industrial facilities, and commercial buildings that require larger open spaces and flexibility in layout.
Portal Frame Structures: Portal frame structures consist of rigid frames with columns and rafters connected by moment-resisting connections. These structures are commonly used for industrial buildings, factories, and large-scale commercial or storage facilities. They provide excellent strength and stability.
Space Frame Structures: Space frame structures use a three-dimensional framework of interconnected steel members to create large open spaces with high strength-to-weight ratios. These structures are often utilized in large-scale buildings like airports, exhibition halls, and sports arenas.
Hybrid Structures: Hybrid steel structures combine steel with other construction materials, such as concrete, timber, or glass, to take advantage of their specific properties. These buildings are designed to optimize the benefits of each material and are used in a wide range of applications, including high-rise buildings, bridges, and architectural landmarks.
Temporary Structures: Temporary steel structures are designed for short-term usage and easy disassembly. They are commonly used for events, construction sites, and emergency shelters, providing quick and temporary solutions that can be easily relocated or dismantled.

Advantages of Steel Structure Industrial Building

High strength and stability: Welded pipes and H-beams are both made of high-strength steel with high tensile strength, capable of withstanding large loads and forces.
Corrosion resistance: Steel structural products that have undergone surface treatment can effectively prevent corrosion and oxidation.
Installation convenience: The design of steel structure products takes into account the convenience of installation.
Diversified specifications: The specifications of steel structure products can be adjusted and customized according to different needs.
Production and Quality Control: Each H-beam product undergoes strict quality inspection procedures to ensure compliance with national standards and customer requirements.

Design And Quote

If you have drawings, we can directly quote according to your drawings, if not, please tell us the details, we have professional technicians to help you design, after getting your approval for your quote.

Basic Design Requirements:

The local site Max. wind speed
Snow load if there is snow in local
Size of the building (length*width*eave height)
Roof and wall material
There is crane inside the building or not; If have, pls confirm the lift tons

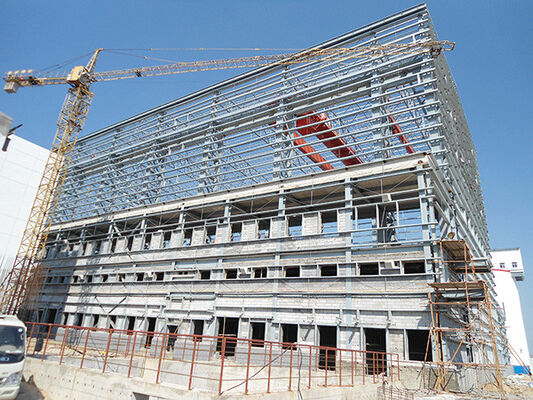

High Strength Industrial Steel Buildings Large Span Prefabricated Commercial Building 1

Quality Control

We have passed the CE and ISO9001 certifications, which demonstrate our excellence and adherence to international standards. The CE certification ensures that our products meet the essential health, safety, and environmental protection requirements within the European Economic Area. Additionally, the ISO9001 certification signifies our dedication to maintaining a robust quality management system, ensuring consistent delivery of high-quality steel structure solutions. These certifications proves our company that upholds the highest industry standards in design, manufacturing. We will fully meet customers' requirements.

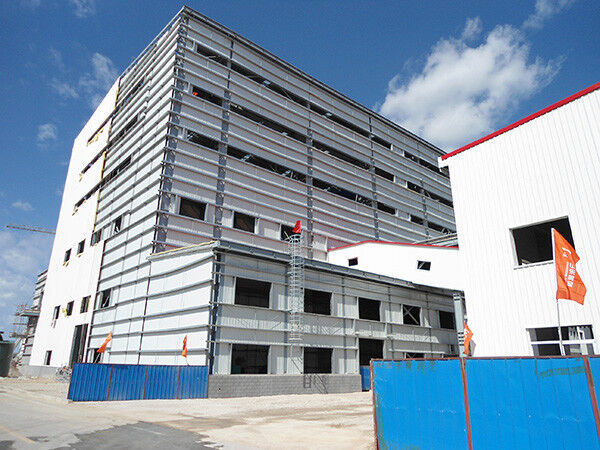

High Strength Industrial Steel Buildings Large Span Prefabricated Commercial Building 2

Project Cases

Qingdao Xinguangzheng Steel Structure Co., Ltd. was established in 1997. After 26 years of continuous development, it has become one of the largest steel structure manufacturers in China. The company has cooperated with more than 130 countries and regions, and has gradually grown internationally.

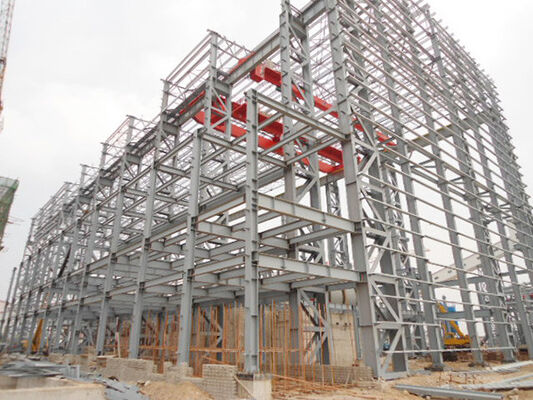

High Strength Industrial Steel Buildings Large Span Prefabricated Commercial Building 3

Why choose us?

We have a group of professional engineers, most of whom has more than 10 years experiences in architecture field. our company has got a various of experiences in design, manufacture, installation and so on. The work staff have excellent skills. Some of them had helped customers to install the warehouse around the world.
We will offer one stop service. Construction drawing,calculation sheet will be offered to help you get construction permit. Foundation design could be free made if you need. We could make 3D drawings to show the view. What's more, Installation drawings will be offered and Steel structure column,beams will be marked number on it to help you install.
We will send you extra bolts,purlins,panels incase any damage when install.
Efficiency is our pursuit. Every inquiry ,emails will be replied immediately. Every questions will be paid high attention.
We also have possessed more than 40 sets of large precise and domestically advanced processing equipments, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and soon.
We will offer details packing list for every container when load so it will be easier to unload.
"Moral personality decides product quality." is our guarantee to the products. "Customers come first." is our everlasting pursuit. Believe your choose, we'll give you a satisfied answer.

High Strength Industrial Steel Buildings Large Span Prefabricated Commercial Building 4

FAQ

1. Are you a manufacturer?

Yes, we have our own factory, we are able to provide a very competitive price for you.

2. How to get a fast quotation?

You tell us the type, size, quantity, roof, wall, floor and other components of the steel buildings, and we will check and quote you quickly.

3. What's your packing methods?

Packed into steel pallet, or rest in bulk.

4. Can you provide the installation help?

We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the construction guidance, and some skilled workers to help for installation.

5. How long does it take to get my building?

Lead time is vary, but typically 2 weeks of drawings and 30-55 days for delivery(depending on complexity).
