Custom Warehouse Workshop Steel Structure Building with Solid H-shape Steel Beam and C Z Section

Custom Warehouse Workshop Steel Structure Building with Solid H-shape Steel Beam and C Z Section

Brand Name:	XGZ
Model Number:	XGZ-SSB040
MOQ:	100 square meters
Price:	USD 30-60 per square meter/ Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Pingdu,Qingdao,China

Certification:

CE EN1090,ISO9001,GOST,AISC

Name:

Steel Structure Building

Application Fields:

Steel Structural Fabrication Construction

Main Frame:

Solid H-shape Steel Beam, Column

Material:

Q235B/Q355B Low Carbon Steel

Column And Purlin:

C Section And Z Section

Usage:

Steel Building,Warehouse,Workshop

Packaging Details:

Steel Pallet

Highlight:

Workshop Steel Structure Building

Easy Installation Steel Structure Building

Custom Warehouse Steel Structure Building

Product Description

Easy Installation Steel Structure Building for Custom Warehouse Workshop

Product Description

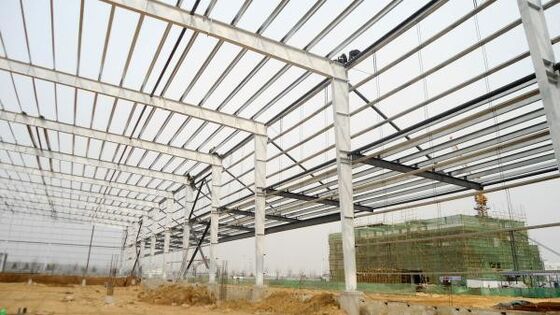

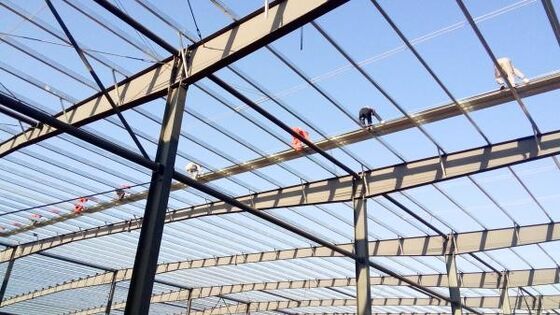

Steel structure buildings offer a modern, quick-installation alternative to traditional concrete or wood structures. The framework consists of interconnected steel columns, beams, trusses, bracing, purlins, and other components joined by welding, bolts, or rivets. The vertical columns and horizontal beams form a sturdy skeleton that transfers loads efficiently while meeting all safety standards.

Product Specification

Our prefabricated steel buildings include:

Primary Framing: H-section steel columns/beams with anti-rust treatments
Secondary Framing: Purlins and tie bars fixed with common bolts
Bracing: Round steel knee bracing for enhanced stability

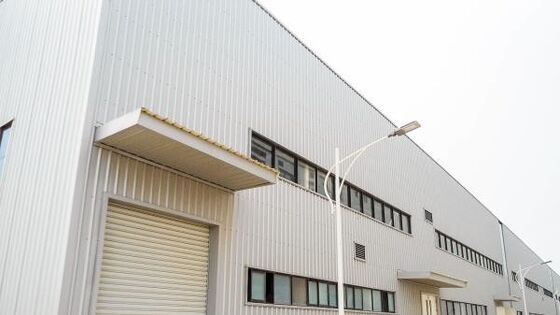

Cladding: Weather-resistant color-coated steel sheets or sandwich panels
Windows/Doors: Customizable plastic steel or aluminum options
Optional Features: Gutters, downpipes, skylights, ventilators, and bridge cranes

Structure	Part	Specification
Main Structure	Column	Q355/Q235 H-steel, Box column available
Main Structure	Rafter, Beam	Q355/Q235 H-steel
Surface Processing	1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120μm) 2. Hot dip galvanization
Sub Structure	Purlin	Q355B, C/Z steel section, galvanization 275g/m²
	Angle Brace	Q235B, L-steel
	Cross bracing	Q235B round bar, L-steel
	Tie bar	Q235B, round pipe
	Batter brace	Q235B, round bar

Custom Warehouse Workshop Steel Structure Building with Solid H-shape Steel Beam and C Z Section 0

Features of Steel Structure Building

Lightweight yet high strength with large span capabilities
Short construction period reduces investment costs
Excellent fire resistance and corrosion protection
Eco-friendly with easy relocation and recyclability
Cost-effective with quick return on investment
Versatile applications across industrial and commercial sectors

Custom Warehouse Workshop Steel Structure Building with Solid H-shape Steel Beam and C Z Section 1

The Uses of Steel Structure Building

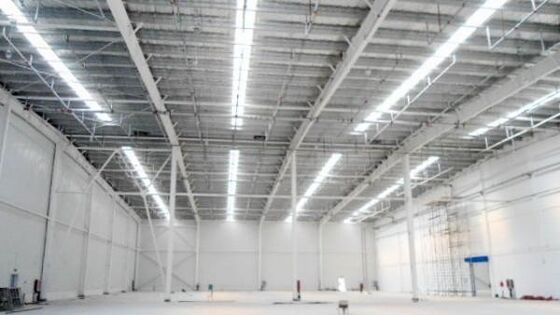

Industrial Warehouses: Ideal for storage with large clear spans
Commercial Buildings: Customizable spaces for malls and offices
High-Rise Buildings: Strong yet lightweight for tall structures
Industrial Plants: Safe environments for manufacturing
Exhibition Halls: Flexible large event spaces

Custom Warehouse Workshop Steel Structure Building with Solid H-shape Steel Beam and C Z Section 3

Design and Quote

Provide these details for a custom design:

Project location and dimensions (L×W×height)
Mezzanine requirements and load capacity
Wall panel preferences (single-layer or sandwich)
Environmental loads (snow/wind)
Interior column allowances
Crane specifications if needed
Any special requirements

Custom Warehouse Workshop Steel Structure Building with Solid H-shape Steel Beam and C Z Section 4

Product Process

Lofting: Precision checking of drawings and dimensions
Material Marking: Optimized cutting plans for efficiency
Cutting: Oxygen/plasma cutting or mechanical methods
Correction: Mechanical or flame straightening
Edge Processing: Milling, planing, or grooving
Hole Making: For bolts, anchors, and connections

Packaging and Shipping

Main frames are palletized for protection and efficient handling. Secondary components are packed in parcels, all optimized for 40ft HQ container shipping to minimize costs.

Custom Warehouse Workshop Steel Structure Building with Solid H-shape Steel Beam and C Z Section 5

FAQ

1. Are you factory?

Yes, we are a specialized steel structure manufacturer with extensive experience.

2. How to get a quotation?

3. What trade terms do you use?

FOB, CIF, C&F - all negotiable based on project requirements.

4. Do you provide installation support?

We supply detailed installation guides and can send technical teams for on-site supervision.

5. What are your payment terms?

Standard 30% deposit with balance before shipment, adjustable for specific projects.
