Q235 Q355B Steel Structure Shed Hot Dip Galvanized Painted Metal Shed Construction

Q235 Q355B Steel Structure Shed Hot Dip Galvanized Painted Metal Shed Construction

Brand Name:	XGZ
Model Number:	XGZ-SS002
MOQ:	100 square meters
Price:	USD 30-100 per square meter/Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

CE EN1090,ISO9001,GOST,AISC

Name:

Steel Shed

Processing Service:

Bending, Welding, Decoiling, Cutting, Punching

Application Fields:

Steel Shed,Warehouse,Workshop

Keyword:

Steel Shed

Design Softwares:

PKPM,Auto CAD,3D3S,Tekla,SAP2000

Surface Treatment:

Hot Dip Galvanized,Painted

Packaging Details:

Steel pallet

Highlight:

Q235 Steel Structure Shed

Q355B Steel Structure Shed

Painted Metal Shed Construction

Product Description

Q235 Q355B Steel Structure Shed Hot Dip Galvanized Painted

Fully Customizable Steel Shed For Various Application Structural Steel Building

Steel shed is a durable, prefabricated structure primarily built with steel framing, wall panels, and roofing. Known for its strength, weather resistance (against rust, wind, and moisture), and low maintenance. It's widely used across residential, commercial, and industrial settings for purposes like storing tools, machinery, or goods, housing light workshops, or sheltering equipment, thanks to its quick assembly and adaptability to various size requirements.

Product Specifications

The steel sheds are fully customized, with all specifications designed according to customer requirements. Our team works closely with clients to ensure their vision becomes a functional, high-quality product.

Component	Specification
Main Structure
Column	Q355, Q235B Welded or Hot Rolled H-steel, Box column available
Beam	Q355, Q235B Welded or Hot Rolled H-steel
Surface Processing	1. Epoxy Zinc-Rich Primer + Epoxy Mica Intermediate Paint (120μm thickness) 2. Hot Dip Galvanization
Sub Structure
Purlin	Q355B C/Z Section Steel
Angle Brace	Q235B L-Steel
Cross Bracing	Q235B Round Bar, L-Steel
Tie Bar	Q235B Round Pipe
Batter Brace	Q235B Round Bar
Roof System
Roof Panel Options	1. Insulated Sandwich Panel, PU, Rock Wool, Glass Fiber, EPS. Thickness 50mm/75mm/100mm 2. Steel Plate, Thickness 0.4mm/0.5mm/mm
Gutter Options	1. Galvanized Steel Gutter, Thickness 2.0mm/2.5mm, 3.0mm 2. Painted, Pre-finished Steel Gutter, Thickness 0.4mm/0.5mm/0.6mm
Down spout	PVC Pipe
Wall System
Wall Panel Options	1. Insulated Sandwich Panel, PU, Rock Wool, Glass Fiber, EPS. Thickness 50mm/75mm/100mm 2. Steel Plate, Thickness 0.4mm/0.5mm/mm 3. Brick Wall (provided by client)
Door	1. Roller Door, Size Customized 2. Sliding Door, Size Customized 3. Access Door, Steel Door, Glass Door etc.
Window	PVC or Aluminum Frame, Fixed, Swing, Sliding etc, Size Customized
Accessories and Fasteners	Anchor Bolts, Chemical Bolts, High Strength Bolts, Ordinary Bolts, Self-Drilling Screws, Rivet etc.

Connection Methods

Steel sheds can be constructed using either welding or bolt connection methods:

Welding Connection: The most important method currently, offering simple structure, material savings, easy processing, and suitability for automated operation.
Bolt Connection: A common alternative providing convenient, rapid assembly. Suitable for structural mounting or detachable structures, though it may weaken component sections and potentially loosen over time.

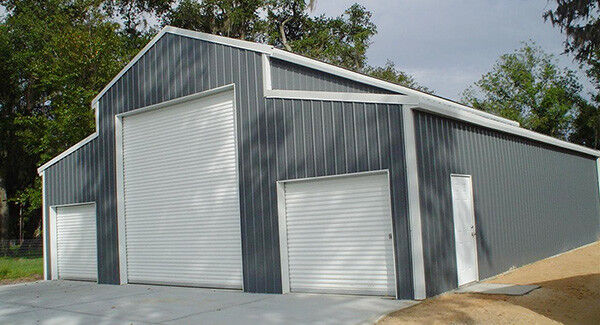

Q235 Q355B Steel Structure Shed Hot Dip Galvanized Painted Metal Shed Construction 0

Advantages of Steel Shed Buildings

Steel structures offer superior performance compared to traditional concrete, featuring "high, large and light" characteristics while enabling standardized design, industrialized production, and mechanized construction.

Light weight (30-50% of concrete buildings) with high strength
Small footprint with high space utilization
Excellent ductility and seismic performance
4x construction efficiency with 1/3 the timeline of traditional buildings
Flexible layout, green environmental benefits, and convenient construction

Installation Process

Our prefabricated steel sheds follow a systematic installation procedure:

Anchor bolt pre-embedding according to design drawings (±5mm precision)
Steel column installation with on-site welding of column foot plates
Floor platform installation with on-site welding of connection plates
Roof beam installation with continuous welding fillet application
Roof purlin, steel stair, and decking floor installation with on-site adjustments
Gutter installation ensuring water funnel alignment with walls

We provide comprehensive installation support including construction drawings, instructional videos, online guidance, and optional on-site installation teams.

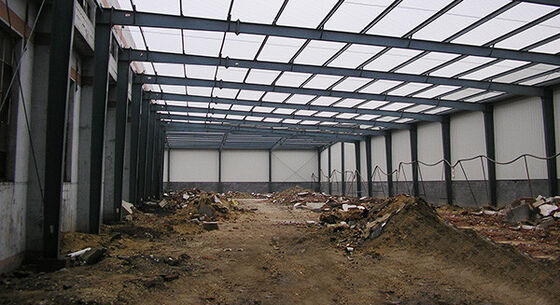

Q235 Q355B Steel Structure Shed Hot Dip Galvanized Painted Metal Shed Construction 1

Packing and Shipping Guidelines

Specialized supervision during loading with secure stacking and binding
Stable transportation with trained personnel for oversized loads
Careful handling with proper equipment knowledge to prevent accidents
Timely unloading and organized stacking at construction sites
Crane operation awareness of surrounding conditions for safety

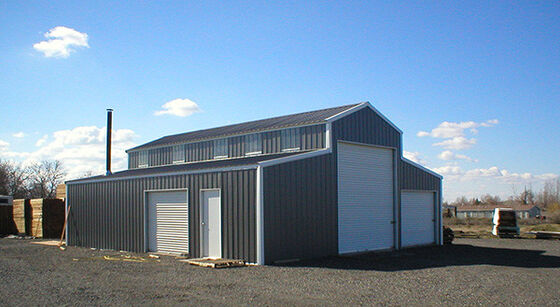

Q235 Q355B Steel Structure Shed Hot Dip Galvanized Painted Metal Shed Construction 2

Frequently Asked Questions

What kind of company are you?

We are a steel structure building manufacturer located in Qingdao, China, with our own factory. We welcome visits to showcase our quality control processes and professional team.

Is your price competitive?

We strive to reduce costs while guaranteeing the best product value for your investment.

Can you send installation teams?

We provide detailed installation drawings and videos free of charge, with optional engineer dispatch or full installation teams available.

Do you offer design services?

Yes, we create full solution drawings using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and other professional tools.

What is the delivery time?

Delivery typically takes 30-55 days after deposit receipt, depending on order quantities, to the nearest Chinese seaport.
