Prefabricated Steel Structure Factory Hot Rolled Welded Steel Buildings

Prefabricated Steel Structure Factory Hot Rolled Welded Steel Buildings

Brand Name:	XGZ
Model Number:	XGZ-SSF010
MOQ:	100 square meters
Price:	USD 30-80 per square meter
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

CE EN1090,ISO9001,GOST,AISC

Name:

Steel Structure Factory

Keyword:

Steel Structure Factory Workshop Warehouse

Body Frame:

Q235, Q355B Steel

Beam:

Welded, Hot Rolled H Section Steel

Purlin:

C, Z Shape Steel Channel

Drawing Design:

AutoCAD, PKPM, 3D3S, Tekla

Packaging Details:

Steel pallet

Highlight:

Hot Rolled Steel Frame Buildings

Prefabricated Steel Structure Factory

Hot Rolled Welded Steel Structure

Product Description

Hot Rolled Steel Frame Buildings Welded Prefabricated Steel Structure

Prefabricated Steel Structure Factory Building With Various Span And Layout

Steel structure factory is usually composed by a series of steel structure members, including H section steel column, H section steel beam, C/Z section purlin, bracing and cladding, etc., which are load-bearing structure of the building.

People today have a great demand of PEB factory because of its light weight steel structure, easy transport and fast construction. With the development of the times, PEB factory is becoming a popular and the most cost-efficient building type, which is the top option in industrial and commercial construction area.

We will provide the accurate budget, construction plan and detail drawing of PEB factory according to your different specific application and request. Steel structure section and panel will be fabricated in different dimension at factory and directly fixed by bolts and self-tapping screws at site.

Product Specification

The selection principle of steels for prefab steel factory:

The principle of steels selection is not only to make the structure safe and reliable and meet the requirements of use, but also to save material and reduce cost. In order to ensure the bearing capacity of the bearing structure and prevent the brittle failure that may occur under certain conditions, the following factors should be considered comprehensively: the importance of the structure, the nature of the load, the connection method, the working environment of the structure, and the thickness of the steels.

Items	Specification
Steel Structure Parts (Q235 or Q355) Hot galvanized or painted.	Steel Column: H Section Steel Steel Beam: H Section Steel Withstand Wind Column: H Section Steel Connected beam: Circular Tube Roof Purlin: Cold formed galvanized C Section Steel or Z Section Steel Wall purlin: Cold formed galvanized C Section Steel or Z Section Steel End Wall purlin: C Section Steel or Z Section Steel
Panel Material Parts	Wall panel: (below is selectable) 50mm, 75mm or 100mm thickness EPS sandwich panel 50mm, 75mm or 100mm thickness Rockwool sandwich panel Corrugated Galvanized Steel sheet with different Color Roofing panel: (below is selectable) 50mm, 75mm or 100mm thickness EPS sandwich panel 50mm, 75mm or 100mm thickness Rockwool sandwich panel Corrugated Steel Sheet, and insulating layer if need.
Door and Window	External Door (Rolled up door or Sliding door) Over-heat Orbit Sliding Door with double open Galvanized steel opening by power-operated Roller Door Internal Door: 50mm Thickness EPS sandwich panel Window: PVC Window or aluminum alloy window frame with glass.
Drainage Parts	Galvanized water channel: 1-3mm thickness galvanized steel water channel Down spout: ∅110 PVC Down spout with Accessorie
Supporting Part	Purline draw bar: ∅12 Horizontal Bracing: ∅20 Circular Tube Angle steel: L Steel Roof tie bar: ∅89*3.5
Others	Ventilating device Crane beam Canopy Bolt: Foundation bolt, High strengthen bolt, Normal bolts.

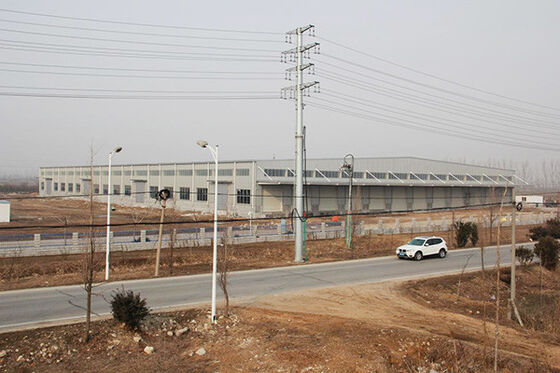

Prefabricated Steel Structure Factory Hot Rolled Welded Steel Buildings 0

Product Advantages

Why choose structural steel factory?

Cost saving and transportation convenient, customer design available.
The main beam and column are qualified steel.
The steel structure makes the house resisting heavy wind of 140km/h and 8 grade earthquake.
Good ability to assemble and disassemble for several times without damage.
Environmental protection effect is good. Steel structure housing construction greatly reduces the sand, stone, the dosage of the ash, used materials mainly green, recyclable or degradation materials, building dismantled, most of the material can be recycled or degradation, won't cause much rubbish.

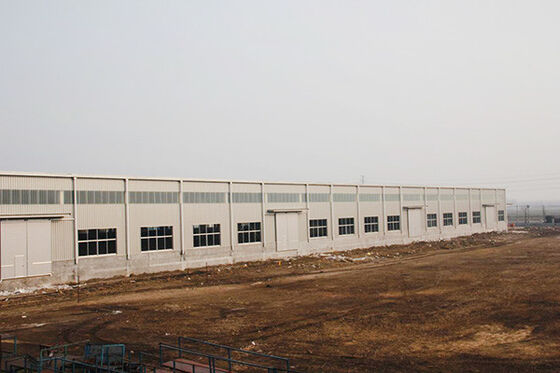

Prefabricated Steel Structure Factory Hot Rolled Welded Steel Buildings 1

Production Processing

Lofting - Including checking the installation size and hole distance of the drawings, checking the size of each part, and producing sample as blanking, bending, milling, planing, hole making and other processing basis.
Marketing material - Including checking materials, drawing cutting, milling, planing, drilling and other processing positions on the material, punching and marking part number, etc. Marking material should pay attention to the following problems: according to the ingredients list and sample for nesting, to save materials as far as possible; Should be conducive to cutting and ensure the quality of parts; When the process is specified, the material shall be taken according to the regulations.
Cutting blanking - Including oxygen cutting (gas cutting), plasma cutting and other high temperature heat source methods and the use of machine cutting and sawing and other mechanical methods.
Correction - Including mechanical correction and flame correction of steel straightening machine.
Edge and end processing - The methods are shovel edge, planing edge, milling edge, carbon arc air gouging, semi-automatic and automatic gas cutting machine, groove machining, etc.
Hole making - Including rivet hole, ordinary connecting bolt hole, high strength bolt hole, anchor bolt hole, etc.

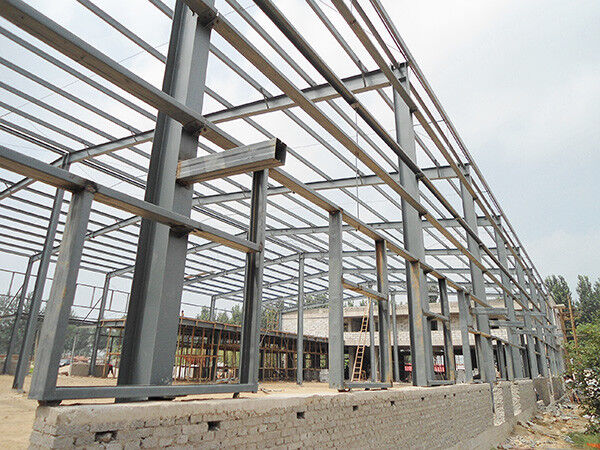

Prefabricated Steel Structure Factory Hot Rolled Welded Steel Buildings 2

Prefabricated Steel Structure Factory Hot Rolled Welded Steel Buildings 3

Project Processing

The cooperation process begins when a customer sends an inquiry.
We then proceed with the design and quotation phase, where our team works closely with the customer to create a tailored solution.
Once the project is approved, it moves to our factory for manufacturing and fabrication.
After completion, the finished product is shipped to the customer's country for installation. We will provide customers with construction drawings and installation videos, and provide online guidance. If customers have specific needs, we can also send construction personnel to the customer's country for offline installation guidance.
Finally, after the installation, the project is complete successfully.

Certification

Xinguangzheng continuously deepens its expertise in the steel structure industry, forming an integrated system for steel structure applications and equipment, centered around steel structures.

Xinguangzheng holds numerous qualifications and certifications, including: Grade I Professional Contracting Qualification for Steel Structure Engineering; Grade I Qualification as a China Steel Structure Manufacturing Enterprise; Grade II General Contracting Qualification for Construction Engineering; Grade II Qualification for Building Curtain Wall Engineering; Grade II Qualification for Waterproofing, Anti-corrosion, and Insulation Engineering; Grade II Qualification for Building Decoration Engineering; ISO14001 Environmental Management System Certification; ISO45001 Occupational Health and Safety Management System Certification; and ISO9001 Quality Management System Certification. It also holds certifications and maintains production systems compliant with American, European, and Russian standards for steel structures.

With integrated full-chain capabilities encompassing design R&D, intelligent manufacturing, and engineering management, the company provides global customers with high-standard steel structure system solutions.

Prefabricated Steel Structure Factory Hot Rolled Welded Steel Buildings 4

Why Choose Qingdao Xinguangzheng?

Xinguangzheng steel structure is one of the biggest steel structure building company in China;
The raw material of XGZ are all from the biggest steel factory;
The great price and best quality make XGZ to be the leader of steel structure building company;
XGZ had more experience to cooperate with foreign clients. Its steel structure were exported to more than 130 countries in last 25 years.

FAQ

1. Are you factory?

Yes, our factory produce and sell steel structures many years. We have a lot of experience at the steel building manufacturing area.

2. How do you guarantee the quality of the products?

Strict product quality control, quality makes the future.This is the tenet of our factory. Each product from our factory has strict testing procedures, and must be 100% quality before delivery.

3. Can you send engineers or whole team to install my project?

Yes, we will send you the detailed installation drawing and video for free, we can provide the services of installation, supervision, and training by extra.

4. How to buy my idea products?

You can provide us your drawing, and we can produce as your drawings. Or we can design as your requirements if you don't have a clear plan. We will provide our plans according to the local climatic condition.

5. What is your terms of payment?

30% deposit is paid in advance, and the balance is paid before shipment; it can be negotiated according to specific projects.
