Modern Prefabricated Steel Frame Construction Q355 Q235 Steel Warehouse Factory

Modern Prefabricated Steel Frame Construction Q355 Q235 Steel Warehouse Factory

Brand Name:	XGZ
Model Number:	XGZ-SIB005
MOQ:	100 square meters
Price:	USD 30-80 per square meter/Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Pingdu,Qingdao

Certification:

CE1090,ISO9001,GOST,AISC

Name:

Prefabricated Steel Frame Construction

Design Style:

Modern

Main Frame:

Light Steel Q355 Q235

Connection:

Bolt Connection, Weld Connection

Drawing Design:

AutoCAD, Tekla, Sketchup

Application Fields:

Prefabricated Steel Structure Industrial Building

Packaging Details:

Steel pallet or in bulk

Highlight:

Modern Prefabricated Steel Frame Construction

Prefabricated Steel Warehouse Factory

Q235 Steel Warehouse Factory

Product Description

Steel Frame Prefabricated Construction Short Construction Time

Short Construction Time Steel Frame Industrial Building For Warehouse Workshop

Industrial steel buildings are buildings in which construction steel constitutes a load-bearing structure. Generally, beams, columns, trusses and other components made of section steel and steel plates constitute load-bearing structures. It is a building composed of roof, floor, wall and other enclosure structures.

Construction section steel usually refers to hot-rolled angle steel, channel steel, I-beam, H-section steel and steel pipe. A building whose components constitute a load-bearing structure is called a profiled steel structure building.

The steel has high strength and elastic modulus, uniform material, good plasticity and toughness, high precision, convenient installation, high degree of industrialization, and faster construction.

Product Parameters

Basic requirements for steels of prefab steel industrial building: there are many kinds of steels, specifications, uses are not the same, for steel structures, there are mainly three requirements:

Higher strength: the bearing capacity of the structures is large, the required section is small, the weight of the structures is light
Better plasticity and toughness: good plasticity, not easy to brittle failure; Good toughness, conducive to bear dynamic load
Good machining performance and durability: including welding ability, cold bending performance and corrosion resistance

Items	Specification
Main Steel Frame	Column: Q235, Q355B Welded H Section Steel Beam: Q235, Q345B Welded H Section Steel
Secondary Frame	Purlin: Q235B C and Z purlin Knee brace: Q235B Angle Steel Tie Rod: Q235B Circular Steel Pipe Brace: Q235B Round Bar Vertical and Horizontal Support: Q235B Angle Steel, Round Bar, Steel Pipe
Maintenance system	Roof Panel: 1. EPS Sandwich Panel 2. Glass Fiber Sandwich Panel 3. Rock Wool Sandwich Panel 4. Pu Sandwich Panel 5. Steel Sheet Wall Panel: 1. EPS Sandwich Panel 2. Glass Fiber Sandwich Panel 3. Rock Wool Sandwich Panel 4. Pu Sandwich Panel 5. Steel Sheet
Accessories	Window: 1. Aluminiumn Alloy Window 2. PVC Window 3. Sandwich Panel Window Door: 1. Sliding Sandwich Panel Door 2. Rolling Metal Door 3. Personal Door Rainspout: PVC

Application

The type of steel industrial building structures includes portal frame, frame structure, truss structure, and grid structure.

Features and applications of building structures:

The portal frame is a structure in which beams and columns are rigidly connected. It has the characteristics of simple structure, reasonable stress, simple construction
Frame structure are flexible, stable and can form a larger space. It is widely used in the shopping mall center, exhibition building, office building, conference center, etc
Steel truss is composed of small-section tube and can be used to form large-span building, usually used in large span factory roof, etc
Grid structure is a kind of multi - super - stable space structure. Grid structure is a commonly used roof form for large stadiums, industrial plants, theaters, waiting halls. The method of this new style structure is to rely on the force of the steel body itself, and use bolt balls to connect the steel columns together to support each other in a staggered manner, and the nets form roof spaces of various shapes. From a conference room as small as a few meters to an industrial plant with a span of several hundred meters, these are all suitable ranges for the space grid structure

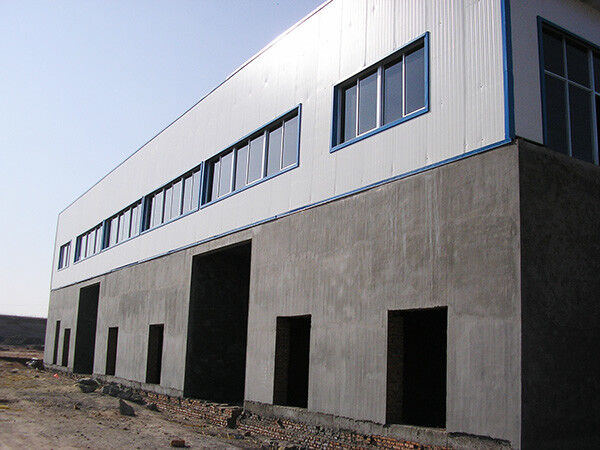

Modern Prefabricated Steel Frame Construction Q355 Q235 Steel Warehouse Factory 0

Advantages of Steel Structure Industrial Building

Cost Savings: Price per square meter can be 25% lower than conventional buildings. Site erection cost is low because of faster erection times and easier process
Quality Control: Designed and fabricated in-factory with strict quality control. The fabrication process includes design and engineering, as well as detailing and manufacturing at the factory
Quick Erection: All steel components are fabricated at the factory and linked by bolts at the site. So the erection process is fast, step by step, easy to install
Flexibility: Steel buildings are flexible in any requirement of design, easy to expand in the future and also economically with low transportation costs
Energy Efficiency: Nowadays, steel buildings are the green solution for the environment with CO2 reduction, energy efficiency, and recycle

Design And Quote

If you have drawings, we can directly quote according to your drawings, if not, please tell us the details, we have professional technicians to help you design, after getting your approval for your quote.

Basic Design Requirements:

Project site location
Overall dimension (length*width*eave height)
Mezzanine or not? How many kgs of load per square meter on mezzanine?
Single-layer steel sheet wall or sandwich panel wall
Snow load if applicable
Wind speed/load
Interior column allowed or not
Overhead crane needed or not, capacity?
Any other particular requirements?

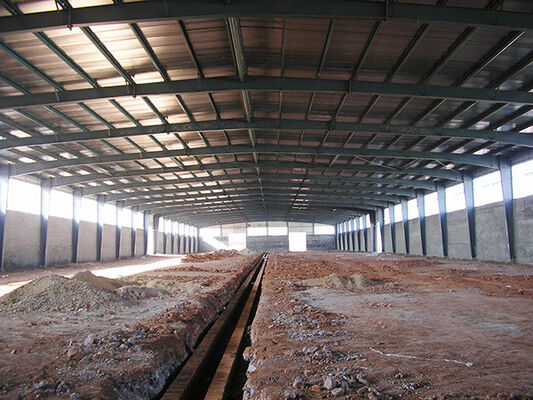

Modern Prefabricated Steel Frame Construction Q355 Q235 Steel Warehouse Factory 1

Quality Control

We have passed the CE and ISO9001 certifications, which demonstrate our excellence and adherence to international standards. The CE certification ensures that our products meet the essential health, safety, and environmental protection requirements within the European Economic Area. Additionally, the ISO9001 certification signifies our dedication to maintaining a robust quality management system, ensuring consistent delivery of high-quality steel structure solutions.

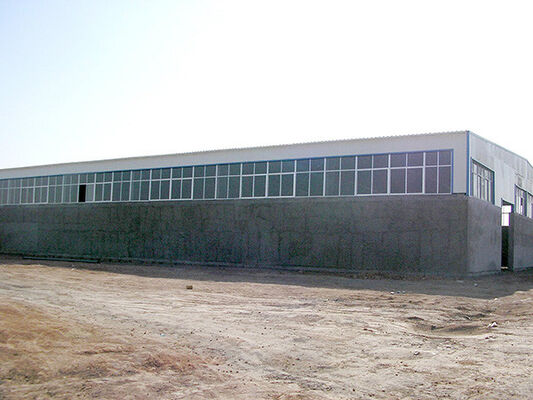

Modern Prefabricated Steel Frame Construction Q355 Q235 Steel Warehouse Factory 2

Project Cases

With a track record of serving 10,000+ overseas projects, we have built comprehensive end-to-end capabilities in steel structure design, manufacturing, and construction. This has solidified our profound international project expertise, providing reliable assurance for global clients.

Modern Prefabricated Steel Frame Construction Q355 Q235 Steel Warehouse Factory 3

Why choose us?

We have a group of professional engineers, most of whom has more than 10 years experiences in architecture field. our company has got a various of experiences in design, manufacture, installation and so on. The work staff have excellent skills. Some of them had helped customers to install the warehouse around the world
We will offer one stop service. Construction drawing,calculation sheet will be offered to help you get construction permit. Foundation design could be free made if you need. We could make 3D drawings to show the view. What's more, Installation drawings will be offered and Steel structure column,beams will be marked number on it to help you install
We will send you extra bolts,purlins,panels incase any damage when install
Efficiency is our pursuit. Every inquiry ,emails will be replied immediately. Every questions will be paid high attention
We also have possessed more than 40 sets of large precise and domestically advanced processing equipments, including large gantry planing machines, automatic submerged arc welding machines, assembling machines, slitters, shot blasting machines and soon
We will offer details packing list for every container when load so it will be easier to unload
"Moral personality decides product quality." is our guarantee to the products. "Customers come first." is our everlasting pursuit. Believe your choose, we'll give you a satisfied answer

Modern Prefabricated Steel Frame Construction Q355 Q235 Steel Warehouse Factory 4

FAQ

1. What kind of company you are?

We are steel structure building Manufacturer located in Qingdao, Shandong, China. We were gaining good reputation among our customers for our professional, warm and thoughtful service.

2. Can you offer designing service?

We'd Love to, we have more than 50 design engineers. We could design full solution drawings as per your requirments. They use software: Auto CAD,PKPM, MTS, 3D3S, Tarch, Tekla Structures(Xsteel)V12.0.etc.

3. Can you provide the installation help?

We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the construction guidance, and some skilled workers to help for installation.

4. How about your quality control?

We have got related quality control certificates. All the products processing including cutting, welding, bending, shot blasting, packing,storing, loading have strict quality control to ensure qualified products.

5. Can we visit your factory?

Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow up your case.
