Modern Steel Frame Workshop Building , Light Steel Structure Prefab Workshop

Modern Steel Frame Workshop Building , Light Steel Structure Prefab Workshop

Brand Name:	XGZ
Model Number:	XGZ-SSW031
MOQ:	200 square meters
Price:	USD30-80 Square Meter/Square Meters
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Qingdao,China

Certification:

CE,ISO9001,GOST,AISC

Name:

Steel Frame Workshop Building

Color:

Client's Request

Main Frame:

Galvanized, Painted Steel Structure

Size:

Customized

Standard:

International Standard

Type:

Light Steel Frame

Design Style:

Modern

Application:

Steel Workshop

Packaging Details:

Steel pallet

Highlight:

Modern Steel Frame Workshop Building

Light Steel Frame Workshop Building

Light Steel Structure Prefab Workshop

Product Description

Modern Steel Frame Workshop Customized Large Span Use Space

Customized Large Span Use Space Steel Structure Workshop For Industrial Utilization

A prefabricated steel structure workshop refers to a type of industrial building where the key structural components—primarily made of steel, such as steel columns, beams, trusses, roof panels, and wall panels—are manufactured in a controlled factory environment rather than being built entirely on-site. These prefabricated steel parts are precision-engineered, cut, welded, and treated (e.g., for corrosion resistance) in the factory to meet strict design standards, then transported to the construction site. Once on-site, the components are quickly assembled into a complete workshop structure using standardized connections like bolts or high-strength fasteners, rather than relying on time-consuming on-site casting or extensive manual fabrication.

Product Parameter

Components of steel structure workshop:

Primary Framing Elements: Columns, beams members are made by H section steels (hot rolled section steel/welded section steel), which will be easily bolted together at site. A factory primer and facing paintings or galvanization surface treatment are applied to get better anti-rusting effect of primary framing elements.
Secondary Framing Elements: Purlin, tie bar are formed as secondary framing, which will fix on columns and beams by common bolts.
Bracing: Round steel is supplied with knee bracing and other supporting parts that need portal framing, which will improve the stability and durability of the whole structural hangar.
Cladding: Roof and Wall are covered by color-coated corrugated steel sheet or steel sandwich panel, hot dipped with zinc and aluminum compound, that is fixed to the outside of structural building to protect it against bad weather or to make it look more attractive and last for generations.
Windows and Doors: Plastic Steel Window/Aluminum-alloy Window; Sliding Door/Folding Door.
Other Options: Gutter, Downpipe, Transparent sheet, Ventilator and Bridge Crane will be fitted according to client's requirements.

Product	Steel structure building
Size	Customized according to customer needs
Main Steel	Q355, Q235 etc
Column & Beam	Welded or Hot rolled H-section
Wall & Roof	Sandwich panel (EPS/PU/glass wool), steel sheet
Door	Rolled up door or sliding door
Window	Plastic steel or aluminum alloy window
Connection	Welding connection or bolt connection
Surface	Hot dip galvanized or painted (can be customized)
Crane	5MT, 10MT, 15MT and more

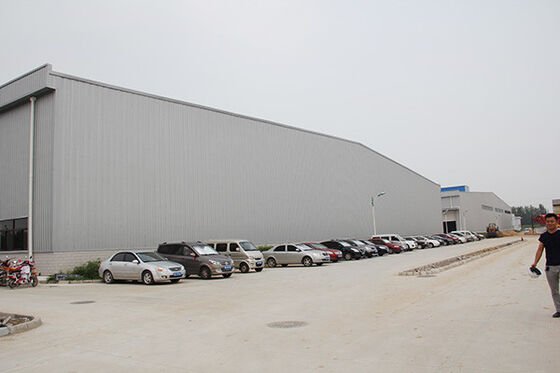

Modern Steel Frame Workshop Building , Light Steel Structure Prefab Workshop 0

Product Features

Free design and architectural drawings provided
Durability, easy maintenance, designed life span for 50 years
Fast and easy assemble, online installation guidance provided
Elaborate and strong design, high wind resistance performance
Thermal and noise insulation, water proof and fire prevention

Customization

Our products are fully customizable to meet the specific needs of yours. We have a team of professional technicians who specialize in designing according to customer requirements. If you have blueprints or drawings, we can provide a direct quotation based on those.

Please kindly tell us following information:

Project site location
Overall dimension (length*width*eave height)
Mezzanine or not? How many kgs of load per square meter on mezzanine?
Single-layer steel sheet wall or sandwich panel wall
Snow load if applicable
Wind speed/load
Interior column allowed or not
Overhead crane needed or not, capacity?
Any other particular requirements?

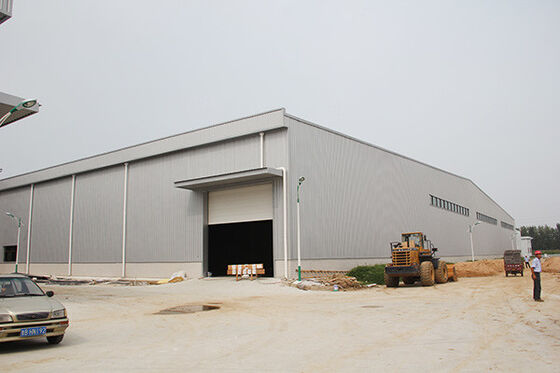

Modern Steel Frame Workshop Building , Light Steel Structure Prefab Workshop 1

Project Cases

Xinguangzheng has decades of experience in custom designing and prefabrication of high quality steel structures. We put our customers first. We will consult with you to determine your precise needs, then creates frame, sandwich panel, roof, windows, doors and other materials to realize the best building possible for you.

With a track record of serving 10,000+ overseas projects, we have built comprehensive end-to-end capabilities in steel structure design, manufacturing, and construction. This has solidified our profound international project expertise, providing reliable assurance for global clients.

Project Procedures

Our cooperation begins when a customer sends an inquiry for a price quote. We then proceed with the design and quotation phase, where our team works closely with the customer to create a tailored solution. Once the project is approved, it moves to our factory for manufacturing and fabrication. After completion, the finished product is shipped to the customer's country for installation. We will send the construction drawing and installation video to the customer for online installation guidance. If the customer needs it, we can also send construction personnel to provide offline construction guidance. After the installation, the project ended smoothly.

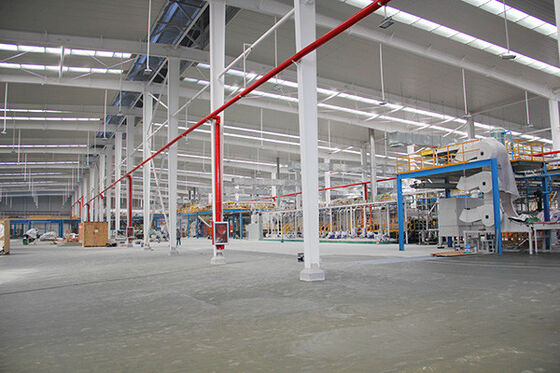

Modern Steel Frame Workshop Building , Light Steel Structure Prefab Workshop 2

Company Profile

Qingdao Xinguangzheng Steel Structure Co., Ltd, founded in 1997, is now the first steel structure listed company (New OTC Market) of Qingdao after a 25-year stable development. It is the group member unit of China Steel Structure Association; the member of China Construction Metal Structure Association; committee unit of China Chamber of International Commerce, and is rated as Credit enterprise (class AAA) by Ministry of Commerce and SASAC of PRC. It has also been listed into the Modern Production Base of Construction Industry in Shandong Province and has achieved the honor of famous mark of Shandong Province.

We will provide the following services for you:

Make suitable design plan and detail construction drawings of steel structure workshop according to the land layout area by Tekla, PKPM, 3D3S.
Steel structure workshop consultation service.
Budget offers of workshop for contractor.
Transportation & delivery as your need.
Fabrication, shot blasting & painting as different request.
Erection & installation of steel structure workshop. Our technician and skilled workers can be on site to guide or install the workshop as need.

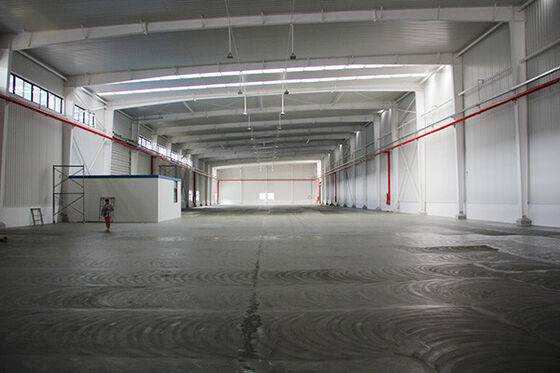

Modern Steel Frame Workshop Building , Light Steel Structure Prefab Workshop 3

Our Certifications

We have passed the CE and ISO 9001 certifications, recognizing our unwavering commitment to quality and excellence. The CE certification signifies that our products comply with the stringent health, safety, and environmental standards set forth in the European Economic Area. Additionally, the ISO 9001 certification validates our implementation of robust quality management systems to consistently meet and exceed customer expectations.

We also accept third-party inspection from customers at any time, and welcome customers to our factory for inspection in person at any time.

Modern Steel Frame Workshop Building , Light Steel Structure Prefab Workshop 4

Modern Steel Frame Workshop Building , Light Steel Structure Prefab Workshop 5

FAQ

1. What kind of company you are?

We are steel structure building Manufacturer located in Qingdao China. We are manufacture factory. And you are welcomed to visit us at any time.

2. Do you offer designing service for us?

Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc.

3. How can I get a quotation for my projects?

You can contact us by email, phone, WhatsApp, Skype, and so on and you will get reply within 7 hours.

4. Are the products be tested before shipping?

Yes, we test every batch goods before shipping to make sure all the goods qualified.

5. How to install?

We will provide detailed installation instruction and video for you, technicians will be sent to help you if the project is big and required our technicians to be onsite as supervisitors.

Any request for steel building, please no hesitate to contact Della by followings:

Contact: Della

Email: della@qdxgz.cn

Mobile/Whatsapp/Wechat: +8615898860020
