Cost Saving Corrosion Resistant Steel Structure Building with H Steel Column & Beam for Industrial Plant and Storage Warehouse

Cost Saving Corrosion Resistant Steel Structure Building with H Steel Column & Beam for Industrial Plant and Storage Warehouse

Brand Name:	XGZ
Model Number:	XGZ-SSB005
MOQ:	100 square meters
Price:	USD 30-70 per square meter/ Negotiable
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 tons per month

Detail Information

Product Description

Detail Information

Place of Origin:

Pingdu,Qingdao,China

Certification:

CE EN1090,ISO9001,GOST,AISC

Name:

Steel Structure Building

Main Structure:

Steel Column & Steel Beam

Grade:

Q355B Q235B

Column & Beam Connection:

High Strength Bolt

Column And Purlin:

C Section And Z Section Steel

Usage:

Steel Building, Warehouse, Workshop

Packaging Details:

Steel Pallet

Highlight:

Cost Saving Steel Structure Building

Storage Warehouse Steel Structure Building

Industrial Plant Steel Structure Building

Product Description

Cost-Saving Steel Structure Building For Industrial Plant And Storage Warehouse

Product Description

Structural steel framing is a durable, reliable, cost-effective, and sustainable option for low-rise, mid-rise, and high-rise building projects. It refers to building frame systems where vertical and horizontal structural elements are formed by a system of structural steel beams and columns. Column spacing varies depending on architectural requirements. The range of available shapes and sizes allows virtually any architectural requirement to be met.

Structural steel framing is designed, fabricated, and erected in accordance with steel structure standards. It is adaptable to almost any architectural layout and is used routinely on various building projects. Structural steel is the most popular framing material for non-residential buildings worldwide, with over half of constructed square footage framed in structural steel annually.

Product Specification

Main frame of prefabricated steel structure building:

H steel column and beam
C section or Z section roof and wall purlin
Round tube steel as tie bar
Round steel as bracing
Color steel sheet as roof and wall
Sandwich panel sliding door
PVC window

Structure	Part	Specification
Main Structure	Steel Column & Beam	1. Material: Q355B (S355JR) or Q235B(S235JR) Welded/Hot Rolled H section steel 2. Surface: Hot Dip Galvanized or Painted 3. Connection: All Bolts Connection
	Supporting System	Roof Purlin: C or Z Section Steel, Q235B Wall Purlin: C or Z Section Steel, Q235B Bracing: Steel Rod, Q235B Cross Support: Steel Rod, Q235B Column Support: Angle Steel; Steel Rod; Q235B Angle Brace: Angle steel,Q235B Tie Bar: Steel Pipe,Q235B
	Roof & Wall System	1. Single Colorful Corrugated Steel Sheet; Thickness: 0.3-0.8mm 2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU; Thickness: 50-150mm
Accessories	Door: Sliding; Rolled Up Door (Manual/Auto) Window: Aluminum Alloy; PVC Downspout: PVC pipe Gutter: Galvanized Steel Sheet; Stainless Steel Ventilator: Stainless Steel Turbine Ventilator Skylight Belt: FRP or PC semi-transparent Skylight Belt Flash: Color Steel Sheet Fittings: Anchor Bolt; High Strength Bolt; Ordinary Bolt, Self-tapping nail etc

The parameters in the above table are for reference only. We will make design choices according to customer requirements and building needs.

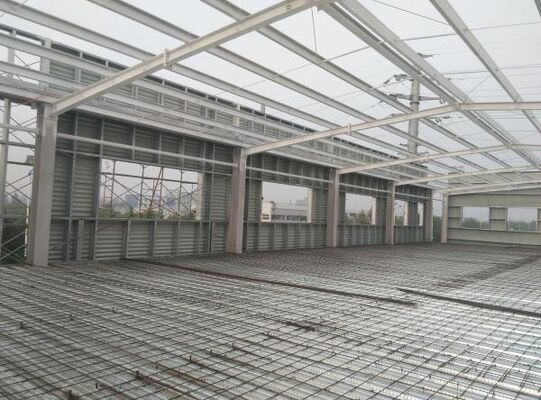

Cost Saving Corrosion Resistant Steel Structure Building with H Steel Column & Beam for Industrial Plant and Storage Warehouse 0

Features of Steel Structure Building

1. Widely used: Steel structure workshops can be used in factories, warehouses, office buildings, gymnasiums, aircraft hangars, and more. Suitable for single-storey long-span buildings as well as multi-storey or high-rise buildings.

2. Simple construction with short period: All components are manufactured in the factory and only need assembly on site, greatly reducing construction time.

3. Durable and easy to maintain: Large span steel structure workshops can withstand harsh weather and require only simple maintenance.

4. Beautiful and practical: Steel structure workshops feature simple, smooth lines with a modern feel. Chromatic wall panels offer color variety and flexibility in material choice.

5. Cost effective: Light weight reduces foundation costs while fast construction enables quick production startup, offering better economic benefits than concrete structures.

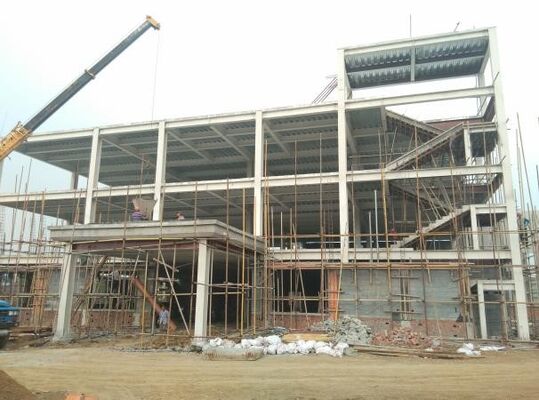

Cost Saving Corrosion Resistant Steel Structure Building with H Steel Column & Beam for Industrial Plant and Storage Warehouse 1

Applications of Steel Structure Building

Industrial Warehouses: Ideal for storage and distribution with large clear spans and heavy load capacity
Commercial Buildings: Perfect for shopping malls and office complexes with customizable spaces
High-Rise Buildings: Suitable for schools and skyscrapers due to steel's strength-to-weight ratio
Industrial Plants: Houses machinery and production lines with safe, efficient environments
Exhibition Halls: Creates large spaces for trade shows and public events

Cost Saving Corrosion Resistant Steel Structure Building with H Steel Column & Beam for Industrial Plant and Storage Warehouse 3

Design and Quote

Provide the following information for us to design your steel structure building:

Location: Country and city
Size: Length × Width × Eave height (m)
Wind load (max wind speed in kn/m², km/h, or m/s)
Snow load (max snow height in kn/m², mm, and temperature range)
Anti-earthquake level
Brick wall requirements (height if needed)
Thermal insulation preferences (EPS, fiberglass wool, rockwool, PU sandwich panels, or metal sheets)
Door quantity & size (units, width × height in m)
Window quantity & size (units, width × height in m)
Crane requirements (units, max lifting weight in tons, max lifting height in m)

Cost Saving Corrosion Resistant Steel Structure Building with H Steel Column & Beam for Industrial Plant and Storage Warehouse 4

Production Process

Material Cutting: Steel sheets and sections are precisely cut using advanced techniques like automatic laser cutting
Assembly: Components are assembled according to design specifications for structural integrity
Welding: Steel components are welded together to form the building framework
Surface Treatment: Components undergo cleaning, sandblasting, and painting for durability
Inspection: Rigorous quality control ensures adherence to design standards

Packaging and Shipping

Packaging Detail: Main steel frames use steel pallets for protection and efficient loading/unloading, saving container space and ocean freight costs. Other parts like purlins and steel sheets are packed in parcels and loaded into 40ft HQ containers for safe, easy handling.

Cost Saving Corrosion Resistant Steel Structure Building with H Steel Column & Beam for Industrial Plant and Storage Warehouse 5

Why Choose Qingdao Xinguangzheng?

Professional Teams: Skilled engineers and construction teams with years of experience in large steel projects
Precise Planning: Thorough preparation ensures on-time completion without errors
Safety First: Highest level supervision ensures quality and safety standards
International Standards: ISO 9001:2015 certified with high-quality products for global projects
Modern Technology: Latest design and manufacturing technologies with continuous innovation
Competitive Pricing: Comprehensive solutions with pricing based on actual project needs
Global Experience: Successfully exported to 130 countries across multiple continents

Cost Saving Corrosion Resistant Steel Structure Building with H Steel Column & Beam for Industrial Plant and Storage Warehouse 6

FAQ

1. Are you a factory?
Yes, we have manufactured and sold steel structures for many years with extensive experience.

2. How to get a quotation?
Contact us by email, phone, WhatsApp, or Skype for a reply within 7 hours.

3. What trade terms do you use?
FOB, CIF, C&F - all negotiable based on project requirements.

4. Can you provide installation support?
We provide detailed installation drawings and videos for free, with optional installation supervision and training services overseas.

5. What are your payment terms?
30% deposit with balance before shipment, negotiable for specific projects.

Contact Information

Contact: Della

Email: della@qdxgz.cn

Mobile/WhatsApp/WeChat: +8615898860020

For any steel building inquiries, please don't hesitate to contact us.
